6 inch monitor speaker Lees meer.

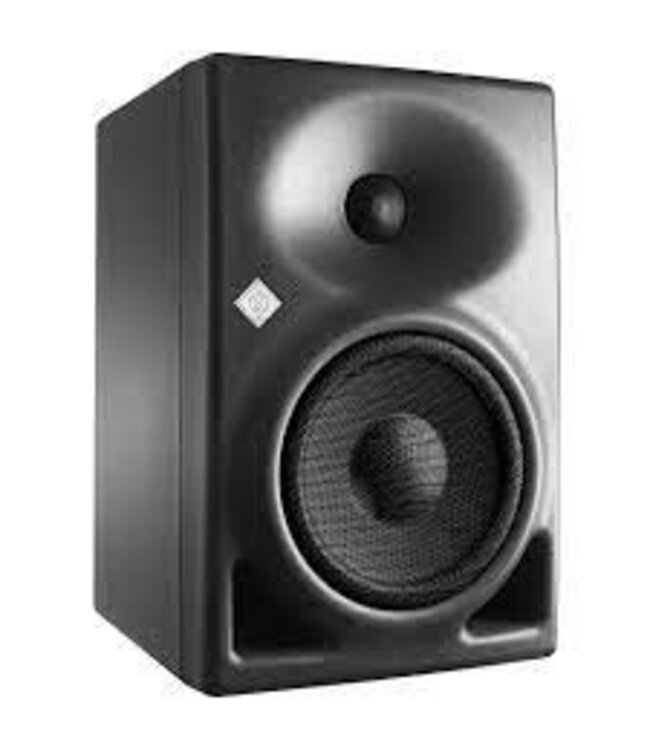

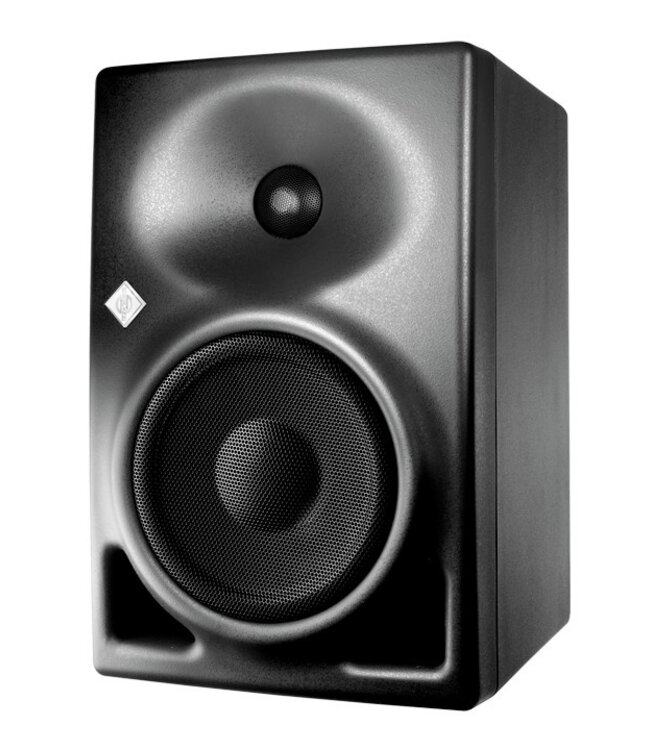

De KH 120 A II monitor is speciaal ontwikkeld voor studio opstellingen maar kan ook prima gebruikt worden als rear monitor in grotere meer-kanaals opstellingen.
Met de KH 120 II A introduceert Neumann een geheel nieuwe actieve monitor, die met zijn compacte afmetingen en zijn fantastische klank eigenlijk in geen enkele radiostudio mag ontbreken.
Tot stand gekomen doordat de uiterst ervaren ontwikkelaars van het voormalige Klein en Hummel team nu binnen de Neumann organisatie zijn opgenomen en nu met gebundelde krachten deze uiterst neutrale nieuwe luidspreker hebben gebouwd.
| Free field frequency response ±6 dB | 46 Hz … 24 kHz |
|---|---|
| Free field frequency response ±3 dB | 52 Hz … 21 kHz |
| Free field frequency linearity deviation between 100 Hz and 10 kHz | ± 1.0 dB |
| Self-generated noise at 10 cm (with input gain set to 100 dB SPL for 0 dBu) | <20 dB(A) SPL |
| Sine wave output with a THD < 0.5 % at 1 m in half space | 95 dB SPL (>120 Hz) |
| Max. SPL calc. in half space at 3% THD at 1m (averaged between 100 Hz and 6 kHz) | 111.1 dB SPL |
| Max. SPL in full space at 3% THD at 1m (averaged between 100 Hz and 6 kHz) | 105.1 dB SPL |
| Bass capability: Max. SPL in half space at 3% THD at 1m (averaged between 50 Hz and 100 Hz) | 104.8 dB SPL |
| Max. short term SPL with IEC-weighted noise (IEC 60268-5) at 1 m, in typical listening conditions | 107 dB(C) SPL |
| Reproduction accuracy between 100 Hz and 10 kHz: 100%, 80%, 50% of loudspeakers produced | ±0.97; ±0.40; ±0.23 dB |
| Max. short term SPL with music material at 2.3 m in typical listening conditions (pair / full range) | 97 dB(C) SPL |
| Max. short term SPL with music material at 2.3 m, in typical listening conditions (pair with subwoofer) | 104 dB(C) SPL |
| Max. long term SPL with pink noise at 2.3 m, in typical listening conditions (single / pair full range) | 88 / 93 dB(C) SPL |
| Max. long term SPL with pink noise at 2.3 m, in typical listening conditions (single / pair with subwoofer) | 89 / 94 dB(C) SPL |
| Display Brightness | White:on/dimmed/off; Red:on/dimmed |
| Bass Extension (Hz, -6 dB) | 46 |
| Maximum output level (dB SPL) | 111.1 |
| Max. Listening Distance up to (m) | 4 |

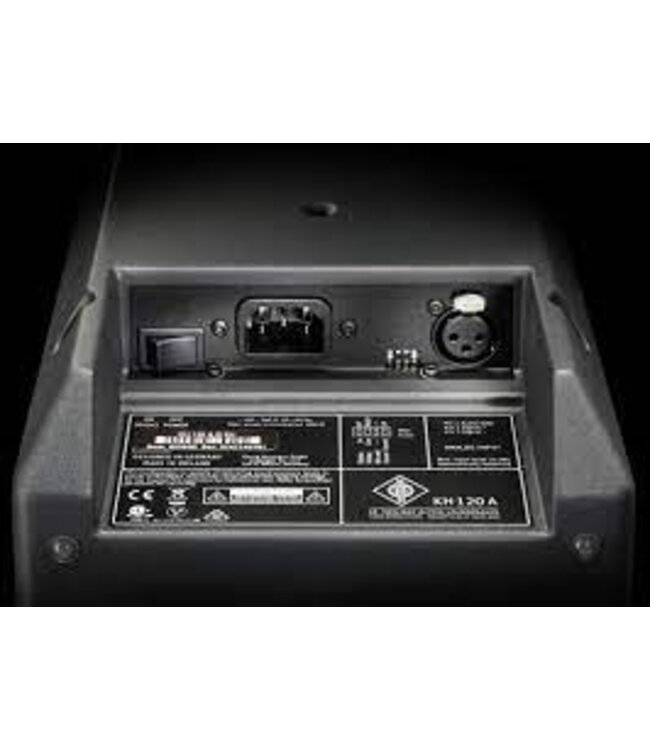

| Analog input(s) | XLR: analog electronically balanced |
| Analog input impedance | 10k Ohms in position 94/108 dB SPL at 1 m; 20k Ohms in position 100/114 dB SPL at 1 m |
| Max. input level | +24 dBu |
| Common mode rejection ratio (CMRR) | >56 dB @ 15kHz |
| Input gain control (sensitivity) | 0 dB ... -15 dB |
| Output level control (output level in 1 m based on 0 dBu input level) | 94; 100; 108; 114 dB SPL |
| Equalization: Bass | 0; -2.5; -5; -7.5 dB |
| Equalization: Low-Mid | 0; -1.5; -3; -4.5 dB |
| Equalization: Treble | +1; 0; -1; -2 dB |
| Controller design | Analog; active |
| Crossover frequency | 2.0 kHz |
| Crossover slope | 24 dB/oct; 4th order |
| Protection circuitry | Independent thermo limiters for woofer, tweeter. Woofer soft clip and excursion limiters. Amplifier overheat. |
| Infrasonic filter: frequency; slope | 30 Hz; 6 dB/Oct. |
| Display: On; Normal Operation | Neumann logo “White” |
| Display: Limit / Clip / Errors / Protection /Boot Mute / Shut Down Mute | Neumann logo “Red” |
| Output power woofer amplifier (THD+N with limiter deactivated: 10%) | 80 W |
| Output power tweeter amplifier (THD+N with limiter deactivated: 10%) | 80 W |
| Output power woofer amplifier (THD+N with limiter deactivated: 0.1%) | 50 W |
| Output power tweeter amplifier (THD+N with limiter deactivated: 0.1%) | 50 W |
| Mains Power Supply: input voltage; frequency | 100-240V; 50/60 Hz |
| Power consumption (230 V / 100 V): Idle | 20 W |
| Power consumption (230 V / 100 V): Full output | 200 W |
| In-rush current (Peak) | 20 A |
| Cabinet material | Aluminium |
| Cabinet surface finish; color (front / back) | Painted; metallic anthracite (RAL 7021) |
| Operating conditions | +10° C to +40° C (+50° F to +104° F); <75% RH; non-condensing |
| Transport/storage conditions | -25° C to +70° C (-13° F to 158° F); <90% RH, non-condensing |
| Woofer | 130 mm (5.25") magnetically shielded with protecting black metal grille |
| Tweeter | 25 mm (1") with protecting black metal grille |
| Mounting points | 2 x M8 threaded inserts with 70 mm spacing on back panel; thread depth 15 mm (5/8”) |
| Product dimensions (height x width x depth) | 277 x 182 x 220 mm (10 7/8” x 7 1/8” x 8 5/8”) |
| External net volume | 9.7 liters |
| Packed dimensions (height x width x depth), mm (inches) | 415 x 365 x 280 mm (16 3/8” x 14 3/8” x 11”) |
