The Infinity Chimp dongle for OnPC will enable 2 DMX universes in your Infinity Chimp OnPC software. With the available DMX output on this dongle, it is possible to distribute the first DMX universe via traditional cable. A second universe is available through Art-Net or sACN.
Art-Net and sACN give you the freedom to use any visualization software to capture the show data and display the results on your virtual stage. This way, preparing your show file becomes easier and more fun.

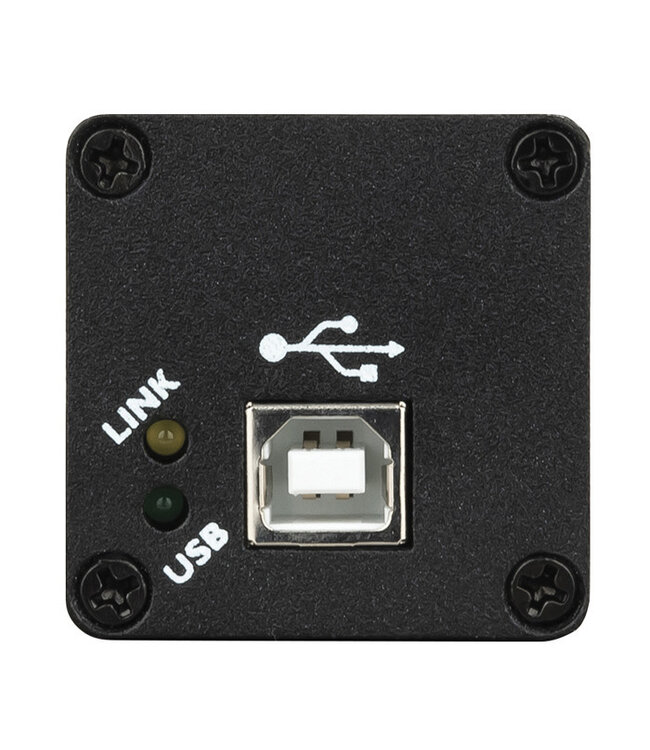

The two indicator LEDs on the PC dongle will light up as soon as your PC/laptop is connected. No additional power supply is required as the dongle is powered via the USB-Connection. Please note that DMX, USB-And Ethernet cables are not included.
- Control Mode DMX
- DMX Channels1024
- sACN Yes
- Art-Net Yes
- Universes 2
- Power Supply 5 VDC
- Power Consumption 2 W
- Power Connector in USB
- DMX Connector out XLR 5P
- Length (mm) 39 mm
- Width (mm) 101 mm
- Height (mm) 39 mm
- Weight 0,15 kg
- IP Rating IP20 (indoor use only)
- Housing Aluminium
- Colour Black
-
LED Indicators Data connect, Power
