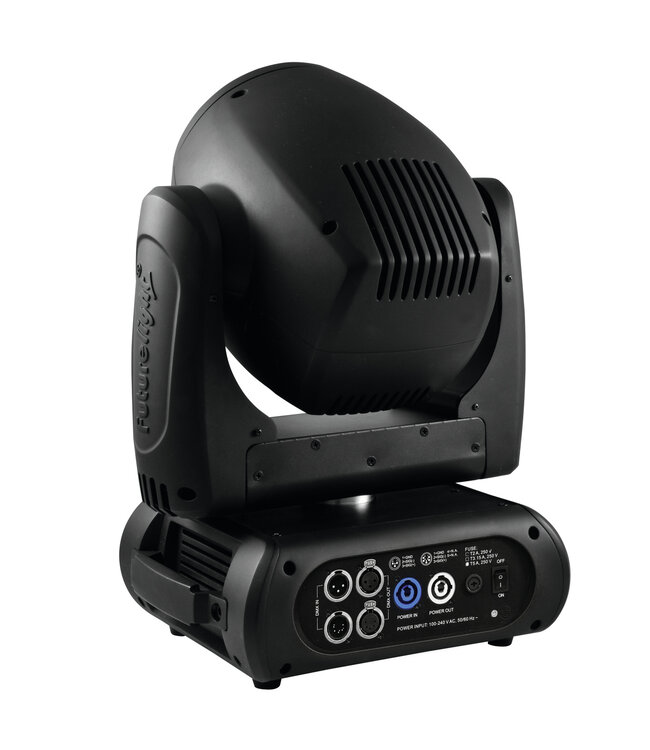

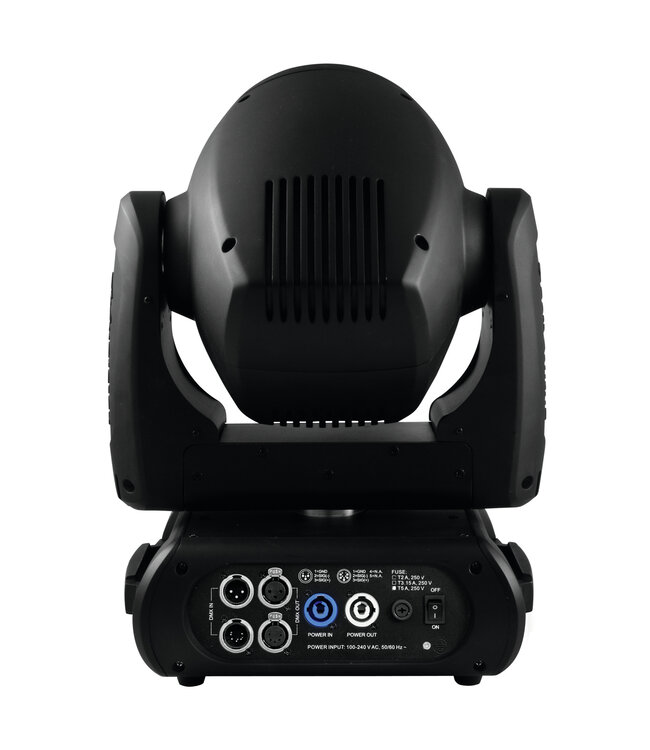

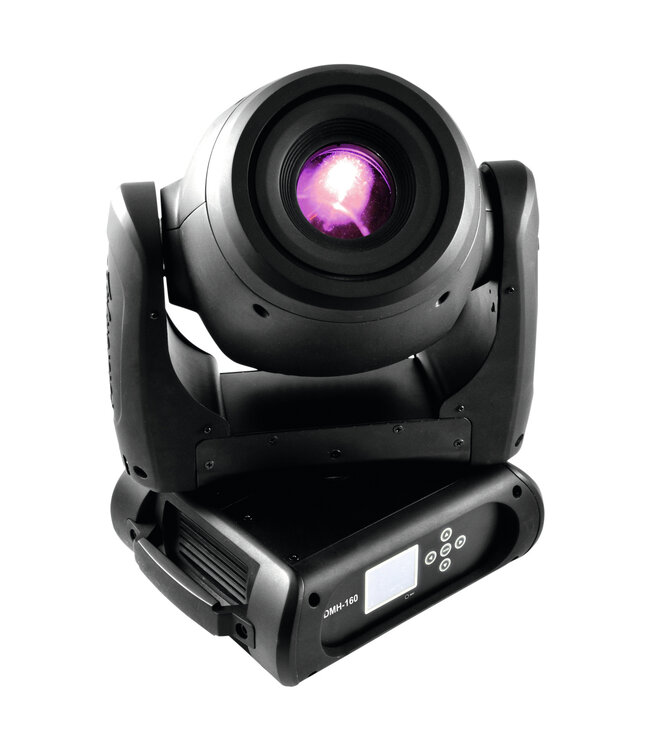

PRO Moving Head with a 200 W COB LED and extensive features
- Powerful white 200 W COB LED
- Variable PWM frequency (pulse-width modulation)
- Upgrade via optional wireless receiver module for WDMX operation (Wireless Solution - made in Sweden)
- Effect wheel with rotating 3-facet prism and 8-facet prism and frost filter
- Exact positioning via 16 bit PAN/TILT movement resolution
- Motorized focus
- Autofocus
- Steplessly adjustable iris
- Dimmer with 16 bit resolution
- Strobe effect with adjustable speed
- Random strobe effect
- Automatic position correction
- PAN angle switchable between 540° and 630°
- Control board with graphic LCD and foil-keyboard for adjusting the DMX-starting address, PAN/TILT reverse, reset
- DMX-controlled operation or stand-alone operation with Master/Slave function
- The scenes can be modified via the Control Board or via an external controller and loaded into the memory
- Number of scenes can be changed individually
- Software upload by optional accessories via DMX link
- Power connection via Neutrik PowerCon jack and included power cable
- Feed-through output allows to power up to 8 devices
- ESDC function (Easy Service Data Check) with battery-buffered control board for operation time readouts etc. (the Li-Ion battery 3.7V, AAA, 10440 is not included)
- DMX control via any standard DMX controller
- LED: 1 x COB (chip-on-board) 200 W CW

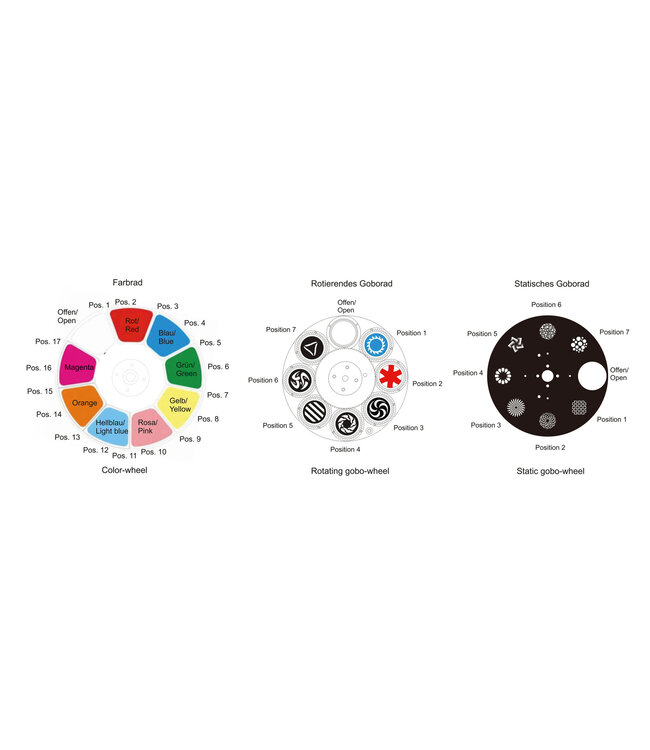

- Color wheel 8 dichroic filters plus open
Rainbow effect with adjustable speed in both directions
- Gobo wheel with static gobos, 7 gobos and open
- Shake effect
- Gobo wheel with rotating gobos, 7 gobos and open
gobos changeable
- Shake effect
- Gobos changeable
- Slot-in gobo system for exchanging gobos without tools
- Can be operated in 14; 16; 23; 25 CH mode
- The device is cooled by temperature-controlled fan
- Controlling by Stand-alone; RDM; DMX; W-DMX by wireless solution upgradeable; Sound to light via Microphone
- Is in EUROLITE LED PC-Control 512 software already preprogrammed
- Flicker-free projection
- Effect: Gobo effect; Single Beam
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
285 W |
| IP classification: |
IP20 |
| Power output: |
1 x PowerCON (gray), mounting version |
| Fuse: |
5 x 20 mm, T 3.15 A |
| Lamp type: |
LED lamp |
| LED: |
1 x COB (chip-on-board) 200 W CW |
| Max. TILT movement: |
270° |
| Max. PAN movement: |
630° |
| Equipment: |
Iris; gobo wheel with rotating gobos; gobo wheel with static gobos; Prism 3-fold; Prism 8-fold; Focus motor-driven; frost filter; color wheel |
| Color generation: |
Color wheel 8 dichroic filters plus open |
| Gobos: |
Gobo wheel with static gobos, 7 gobos and open
Shake effect
Gobo wheel with rotating gobos, 7 gobos and open
Outside diameter 27mm
Image diameter 22mm
Gobos changeable
Shake effect
Gobos changeable
Slot-in gobo system for exchanging gobos without tools |
| DMX channels: |
14; 16; 23; 25 |
| DMX input: |
1 x 5-pin XLR (M) mounting version
1 x 3-pin XLR (M) mounting version |
| DMX output: |
1 x 5-pin XLR (F) mounting version
1 x 3-pin XLR (F) mounting version |
| Power connection: |
Mains input PowerCON (blue), mounting version Power supply cord with safety plug (provided) |
| Cooling: |
Temperature-controlled fan |
| Control: |
Stand-alone; RDM; DMX; W-DMX by wireless solution upgradeable; Sound to light via Microphone; EUROLITE LED PC-Control 512 software |
| Beam angle: |
11° |
| Beam angle (1/2 peak): |
11° |
| Illuminance in Lux (lx): |
CW 3m: 27074 lx, 6m: 6796 lx |
| Housing color: |
Black |
| Use of brands: |
Built with NEUTRIK connector |
| Dimension: |
Width: 34.3 cm
Depth: 26.2 cm
Height: 44.1 cm |
| Weight: |
15.85 kg |
