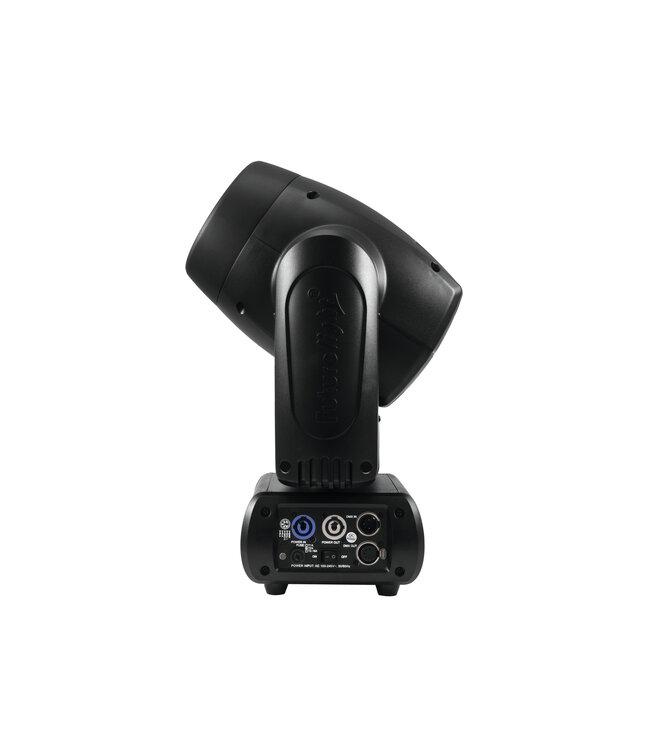

DMB-50 LED Moving-Head
True Colors
The DMB-50 is a very special beam spotlight. It has RGB color mixing, which mixes very cleanly and congruently, despite the narrow beam angle or when using the prism. That is not common and makes this beam something extraordinary.
Add to that a frost filter that delicately softens and widens the whole picture.
You get the rich single colors red, green and blue. And moreover, you can use the full possibility of the RGB color mixture. In addition, you find a gobo wheel with a wide range of patterns, a rotating prism and a DMX-controllable focus.
PRO beam Moving Head with a 50 W LED and very good RGB color mixing
- Extraordinary projection possibilities, thanks to the RGB LED module (3in1) - even color mixing, sharp, narrow beams, vivid single colors and homogeneous white
- Very narrow illumination angle of 2°
- Upgrade via optional wireless receiver module for WDMX operation (Wireless Solution - made in Sweden)
- 8-facet prism and frost filter
- Preset colors and color temperatures (virtual color wheel)
- Exact positioning via 16 bit PAN/TILT movement resolution
- Dimmer
- Motorized focus
- Strobe effect with adjustable speed
- Random strobe effect
- Automatic position correction
- PAN angle switchable between 540° and 630°
- ESDC function (Easy Service Data Check) with battery-buffered control board for operation time readouts etc. (the Li-Ion battery 3.7V, AAA, 10440 is not included)
- Control board with graphic LCD and foil-keyboard for adjusting the DMX-starting address, PAN/TILT reverse, reset
- DMX-controlled operation or stand-alone operation with Master/Slave function
- The scenes can be modified via the Control Board or via an external controller and loaded into the memory
- Number of scenes can be changed individually
- Software upload by optional accessories via DMX link
- Power connection via Neutrik PowerCon jack and included power cable
- Feed-through output allows to power up to 8 devices
- DMX control via any standard DMX controller
- LED: 1 x COB (chip-on-board) 50 W 3in1 TCL RGB (homogenous color mix)
- Gobo wheel with static gobos, 17 gobos and open
shake effect
- Can be operated in 16; 18; 20; 21 CH mode
- The device is cooled by temperature-controlled fan
- Controlling by RDM; DMX; Stand-alone; W-DMX by wireless solution upgradeable; Sound to light via Microphone
- Is in Light J Software; EUROLITE LED PC-Control 512 software already preprogrammed
- Flicker-free projection
- Effect: Gobo effect
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
115 W |
| IP classification: |
IP20 |
| Power output: |
1 x PowerCON (gray), mounting version |
| Lamp type: |
LED lamp |
| LED: |
1 x COB (chip-on-board) 50 W 3in1 TCL RGB (homogenous color mix) |
| Max. TILT movement: |
Exact positioning (16 bit resolution) 270° Auto position correction (feedback) |
| Max. PAN movement: |
Exact positioning (16 bit resolution) 540° Positioning switchable to 630° Auto position correction (feedback) |
| Flash rate: |
0 - 20 Hz |
| Equipment: |
Gobo wheel with static gobos; Prism 8-fold; frost filter; Focus motor-driven |
| Gobos: |
Gobo wheel with static gobos, 17 gobos and open
Shake effect |
| DMX channels: |
16; 18; 20; 21 |
| DMX input: |
1 x 5-pin XLR (M) mounting version |
| DMX output: |
1 x 5-pin XLR (F) mounting version |
| Power connection: |
Mains input PowerCON (blue), mounting version Power supply cord with safety plug (provided) |
| Cooling: |
Temperature-controlled fan |
| Control: |
RDM; DMX; Stand-alone; W-DMX by wireless solution upgradeable; Sound to light via Microphone; Light J Software; EUROLITE LED PC-Control 512 software |
| Beam angle: |
2° |
| Beam angle (1/2 peak): |
2° |
| Illuminance in Lux (lx): |
R red 6m: 4153 lx
G green 6m: 28365 lx
B blue 6m: 1725 lx
All 6m: 34232 lx |
| Housing color: |
Black |
| Dimension: |
Width: 29.8 cm
Depth: 26.7 cm
Height: 39.8 cm |
| Weight: |
12.40 kg |
