Professionele audioprocessor 2 input / 6output, 96KHz bemonsteringsfrequentie, 32bit DSP, 24bit A/D en D/A converter, 8 bands PEQ, vertraging tot 1000ms, HPF- en LPF-filters, wifi-toegangspunt, pc-software en tablet IOS en Android toepassing.

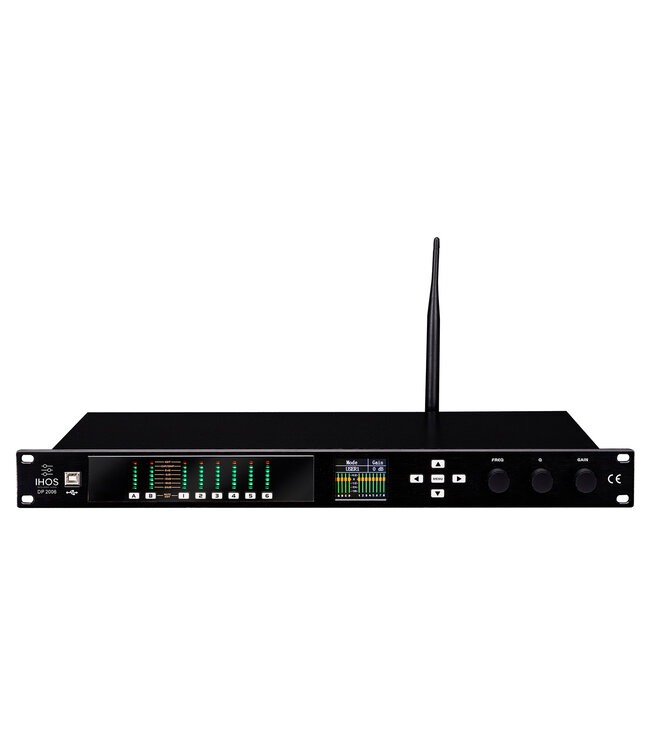

• DP series, a professional audio processor.
• 96 kH sampling frequency, 32-bit DSP processor, 24-bit A/D and D/A converter.
• 8 bands PEQ, Gain (+/- 20dB), delay up to 1000 ms, polarity and mute for each channel.
• Lo-shelf and Hi-shelf for output channels.
• HPF/LPF: 12dB, 18dB, 24dB or 48dB.
• Crossover type: Bessel, Butterworth, Linkwitz-Riley.
• Channel copy function for Input/Output channels.
• 20 groups of users settings. Central control support.
• WiFi, USB, RS232 interfaces.
• Equipped with professional PC software.
• 2 Input / 6 Output channels.
• Input impedance: 20 kΩ.
• Output impedance: 100 Ω.
• 1x USB port.
• Impot range: ≤+18 dBu.
• Frequency: 20 Hz - 20 kHz (-0.5 dB).
• S/N: >110 dB.
• THD: <0,01 % Output= 0dBu / 1 kHz.
• Separation: >80 dB (1 kHz).

  Input channels:
• Mute
• Delay adjustment range: 0 - 1000 ms.
• Polarity - in phase (+) & reversed phase (-).
• PEQ: 8 bands PEQ, Freq: 20 Hz - 20 kHz, bandwidth 0,05 - 3 oct. Step: 0,05 oct, Gain +/- 20 dB,
• Step: 0,1 dB.

  Output channels:
• Mute
• Select: each output channel can be select different input channels, you can select any combination of input channels.
• Gain: adjustment range: 12dB, step: 0,1 dB.
• Delay adjustment range: 0 - 1000 ms.
• Polarity - in phase (+) & reversed phase (-).
• PEQ: Each output channel with 8 bands PEQ and 3 modes: PEQ/Lo-shelf/Hi-shelf.
• Frequency: LPF, HPF, mode: Linkwitz - Riley/Bessel/Butterworth, FREQ: 20 Hz - 20 kHz,
• Slop:12dB/oct, 18dB/oct, 48dB/oct.
• Limiter: Gate level: 20dB, step: 1dB, start time: 0,3 ms - 100 ms, <1 ms, Step: 0,1 ms>, 1ms,
• Step: 1 ms Release Time is the 4, 8, 16, 32 times of the start time.


• Processor: 96 kHz sampling frequency, 32-bit DSP chip processor, 24-bit A/D and D/A converter.
• Consumption: ≤25W.
• Power input: 110 / 240 Volt AC, 50/60 Hz.
• Gross Weight: 3,15 Kg.
• Package dimensions: 57 x 26 x 9 cm.
