Professionele audioprocessor 2 input/4 output, 96KHz bemonsteringsfrequentie, 32bit DSP, 24bit A/D en D/A converter, 8 bands PEQ, vertraging tot 1000ms, HPF- en LPF-filters, wifi-toegangspunt, pc-software en tablet Professionele audioprocessor 2 input/6output, 96KHz bemonsteringsfrequentie, 32bit DSP, 24bit A/D en D/A converter, 8 bands PEQ, vertraging tot 1000ms, HPF en LPF filters, wifi access point, PC software en tablet IOS en Android applicatie.

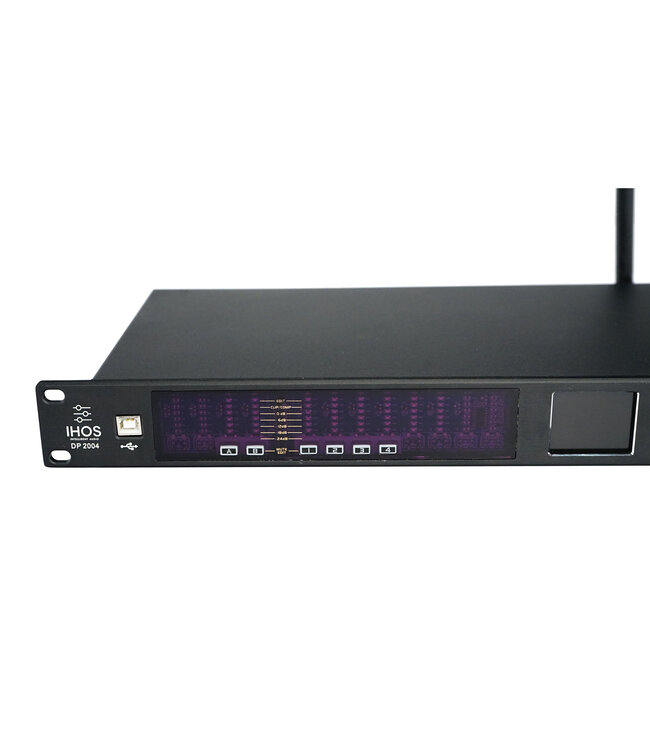

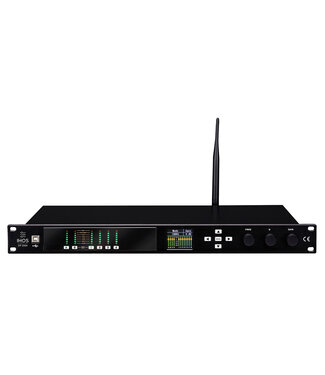

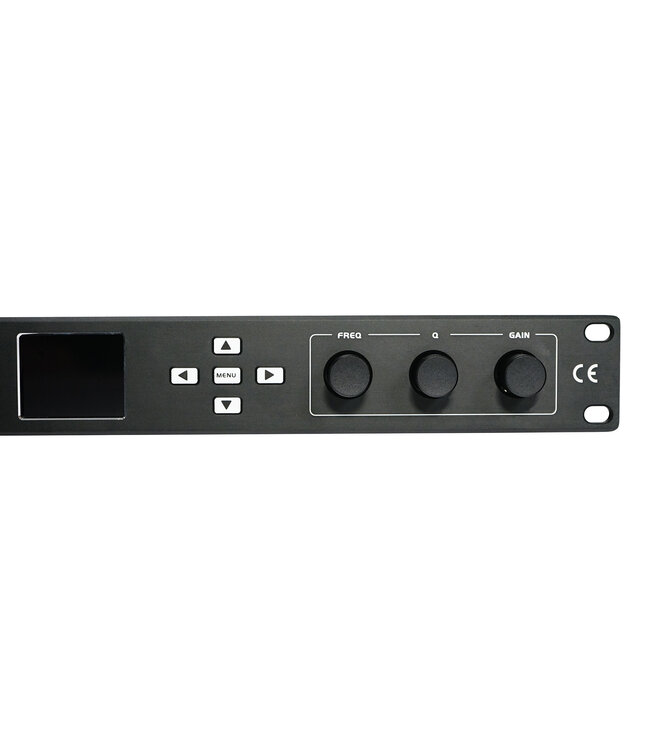

- DP series, a professional audio processor.
- 96 kH sampling frequency, 32-bit DSP processor, 24-bit A/D and D/A converter.
- 8 bands PEQ, Gain (+/- 20dB), delay up to 1000 ms, polarity and mute for each channel.
- Lo-shelf and Hi-shelf for output channels.
- HPF/LPF: 12dB, 18dB, 24dB or 48dB.
- Crossover type: Bessel, Butterworth, Linkwitz-Riley.
- Channel copy function for Input/Output channels.
- 20 groups of users settings. Central control support.

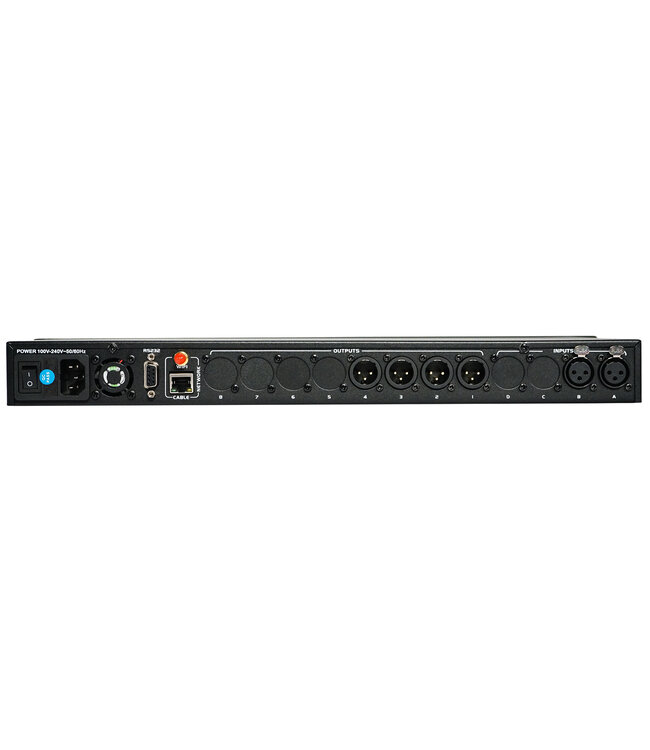

- WiFi, USB, RS232 interfaces.
- Equipped with professional PC software.
- 2 Input / 4 Output channels.
- Input impedance: 20 kΩ.
- Output impedance: 100 Ω.
- 1x USB port.
- CMRR: >70 dB (1 kHz).
- Impot range: ≤+18 dBu.
- Frequency: 20 Hz - 20 kHz (-0.5 dB).
- S/N: >110 dB.
- THD: <0,01 % Output= 0dBu / 1 kHz.
- Separation: >80 dB (1 kHz).
- Input channels:
- Mute
- Delay adjustment range: 0 - 1000 ms.
- Polarity - in phase (+) & reversed phase (-).
- PEQ: 8 bands PEQ, Freq: 20 Hz - 20 kHz, bandwidth 0,05 - 3 oct. Step: 0,05 oct, Gain +/- 20 dB,
- Step: 0,1 dB.
- Output channels:
- Mute
- Select: each output channel can be select different input channels, you can select any combination of input channels.
- Gain: adjustment range: 12dB, step: 0,1 dB.
- Delay adjustment range: 0 - 1000 ms.
- Polarity - in phase (+) & reversed phase (-).
- PEQ: Each output channel with 8 bands PEQ and 3 modes: PEQ/Lo-shelf/Hi-shelf.
- Frequency: LPF, HPF, mode: Linkwitz - Riley/Bessel/Butterworth, FREQ: 20 Hz - 20 kHz,
- Slop:12dB/oct, 18dB/oct, 48dB/oct.
- Limiter: Gate level: 20dB, step: 1dB, start time: 0,3 ms - 100 ms, <1 ms, Step: 0,1 ms>, 1ms,
- Step: 1 ms Release Time is the 4, 8, 16, 32 times of the start time.
- Processor: 96 kHz sampling frequency, 32-bit DSP chip processor, 24-bit A/D and D/A converter.
- Consumption: ≤25W.
- Power input: 110 / 240 Volt AC, 50/60 Hz.
- Gross Weight: 3,15 Kg.
- Package dimensions: 57 x 26 x 9 cm.
