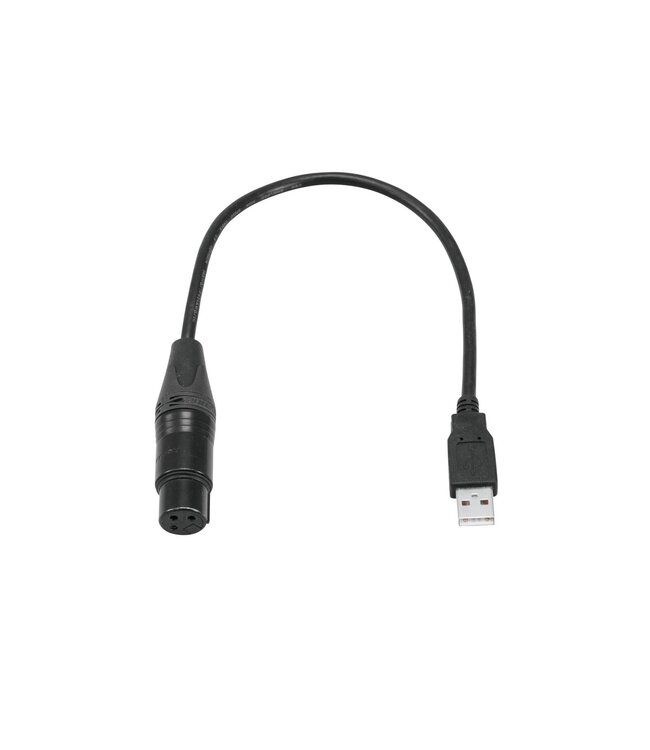

USB DMX interface without software for use with lighting control programs
- Extremely compact USB DMX interface for beginners
- Electronic is extremely compact placed in the XLR plug
- For controlling DMX devices with a computer
- Works with FreeStyler, DMXControl 3, PC_DIMMER, Lightkey (MAC)
- Super portable format fits laptop bags
- Connections: 3-pin XLR inline jack (Neutrik), USB 2.0/1.1 A
- Powered via USB
- Driver software available for download at www.eurolite.de
- Applicable as firmware uploader for select Eurolite devices such as freeDMX AP and DXT tools
- Eurolite's USB-DMX512 PRO interface MK2 with galvanically isolated DMX output is recommended for professional DMX applications
- Can transmit up to 512 DMX channels
- Controlling by DMX
- Compatible with Linux, Win 7, Win 10, OS X 10.2 or better
- Made in Germany
| Power supply: |
5 V DC 500 mA |
| IP classification: |
IP20 |
| DMX channels: |
Output 512 |
| DMX output: |
1 x 3-pin XLR (F) |
| Power connection: |
Fixed Power supply cord for USB A mains connection |
| Control: |
DMX |
| USB port: |
USB 2.0, Typ A |
| Color: |
Black |
| Weight: |
0.05 kg |
| Operating system: |
Linux, Win 7, Win 10, OS X 10.2 or better |
| USB cable |
| Dimension: |
Length: 40 cm |
| Adapter |
| Dimension: |
Length: 7 cm
Diameter: Ø 1.8 cm |
