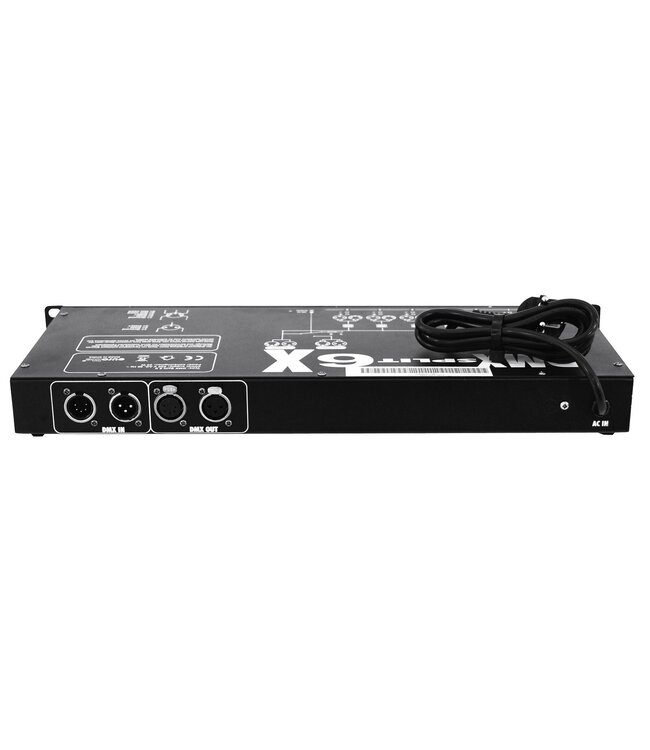

One DMX-line is partitioned into six lines with this splitter. Due to the fact, that all outputs are seperated galvanically, one broken line will not cause a blackout. When a lighting performance without any disturbance is aspired, then this DMX Split is a must-have.
Splitter with 6 galvanized isolated outputs, 3-pin & 5-pin XLR sockets
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 15 W |
| DMX input: | 1 x 3-pin XLR (M) mounting version 1 x 5-pin XLR (M) mounting version |
| DMX output: | 6 x 3-pin XLR (F) mounting version Separate (galvanic) 6 x 5-pin XLR (F) mounting version Separate (galvanic) 1 x 5-pin XLR (F) mounting version Bypass 1 x 3-pin XLR (F) mounting version Bypass |
| Power connection: | Fixed Power supply cord with safety plug |
| Control elements: | Bypass/terminating resistor Schalter, power switch |
| Dimension: | Width: 48.3 cm Depth: 20 cm Height: 4.45 cm |
| Weight: | 3.23 kg |
