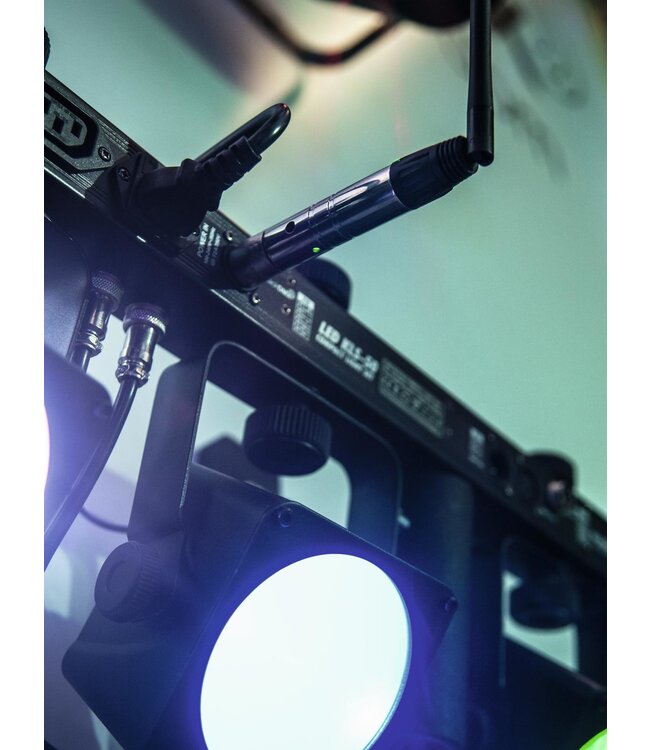

Wireless DMX receiver 2.4 GHz, phantom powered
- User-friendly 5-pin XLR plug (female) with swivel antenna
- Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
- Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX receivers and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
- 1 to 512 QuickDMX receivers can be controlled by each transmitter
- Plug & Play: quick and easy setup with one operating button for connecting/disconnecting QuickDMX receivers
- LED indication for functions
- Transceiver, to be used as transmitter or receiver
- Requires 5 V phantom power for operation
- 2.4 GHz ISM band - license-free worldwide
- Can receive and process up to 512 DMX channels
- Controlling by DMX; QuickDMX built-in
- Use a operating range up to 400m
| Power supply: |
5 V DC |
| IP classification: |
IP20 |
| DMX channels: |
Input 512 |
| DMX output: |
1 x 5-pin XLR (F) |
| Power connection: |
Mains input 5-pin XLR (W) connector |
| Control: |
DMX; QuickDMX built-in |
| Carrier frequency: |
2.4 GHz |
| Modulation: |
GFSK |
| Parallel mode: |
Max. 6 transmitter |
| Range: |
400 m |
| Color: |
Silver |
| Dimension: |
Length: 21.2 cm
Diameter: Ø 1.8 cm |
| Weight: |
0.10 kg |
