30W scanner - met roterende gobo's en kleurenwiel Lees meer.

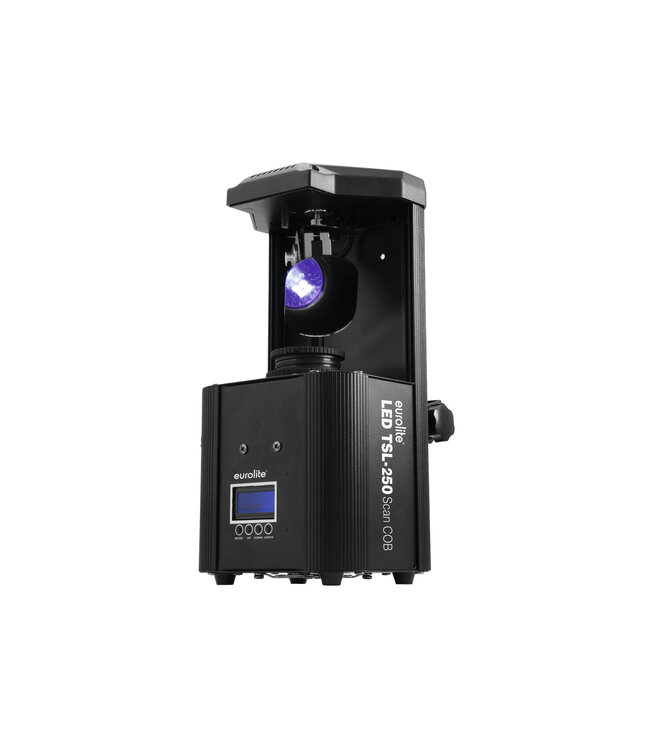

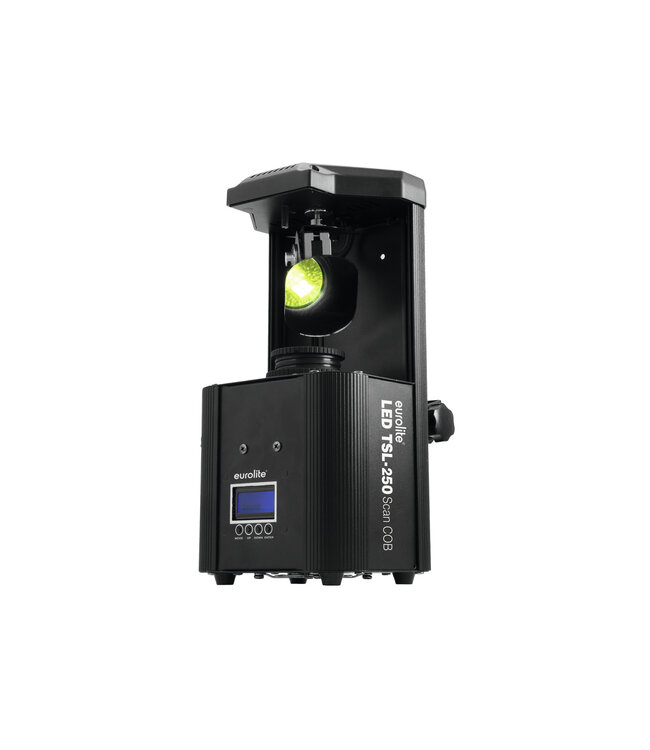

Handy scanner with 30 W LED, rotating gobo and color wheel
Power supply: | 100-240 V AC, 50/60 Hz |
Power consumption: | 65 W |
IP classification: | IP20 |
Protection class: | Class I |
Fuse: | Device fuse 5 x 20 mm, T 1 A Fuse replaceable |
Lamp type: | LED lamp |
LED: | 1 x COB (chip-on-board) 30 W |
Equipment: | Color wheel; gobo wheel with rotating gobos; Focus manual |
Color generation: | Color wheel 7 dichroic filters plus open |
Gobos: | Gobo wheel with rotating gobos, 7 gobos and open Outside diameter 14mm Image diameter 10mm Gobos changeable Slot-in gobo system for exchanging gobos without tools Shake effect |
DMX channels: | 10 |
DMX input: | 3-pin XLR (M) mounting version |
DMX output: | 3-pin XLR (F) mounting version |
Power connection: | Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided) |
Cooling: | Cooling fan |
Control: | Stand-alone; DMX; QuickDMX via USB (optional); Master/slave function; Sound to light via Microphone |
Beam angle: | 9° |
Beam angle (1/2 peak): | 9° |
Illuminance in Lux (lx): | CW 1m: 9123 lx, 3m: 955 lx, 6m: 149 lx |
Housing color: | Black |
Display type: | LCD display |
Dimension: | Width: 16.0 cm Depth: 15.0 cm Height: 33.0 cm |
Weight: | 3.16 kg |
