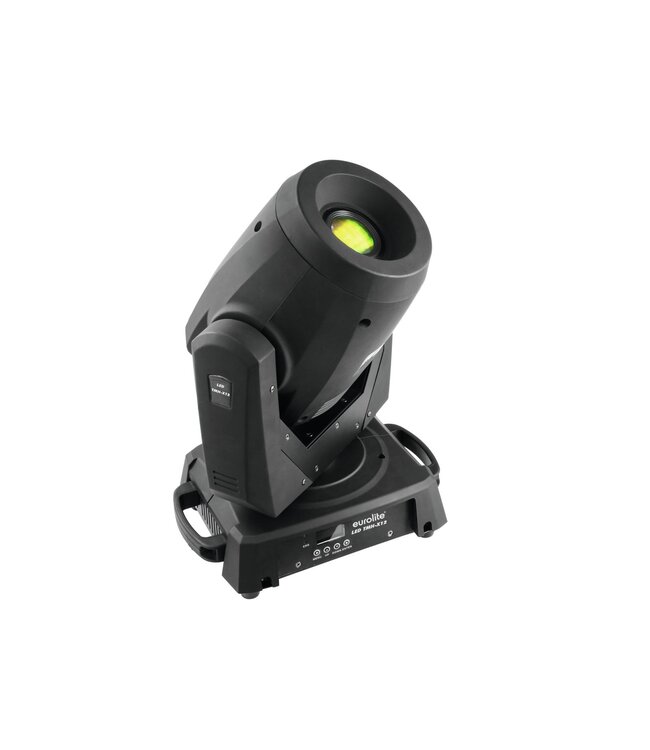

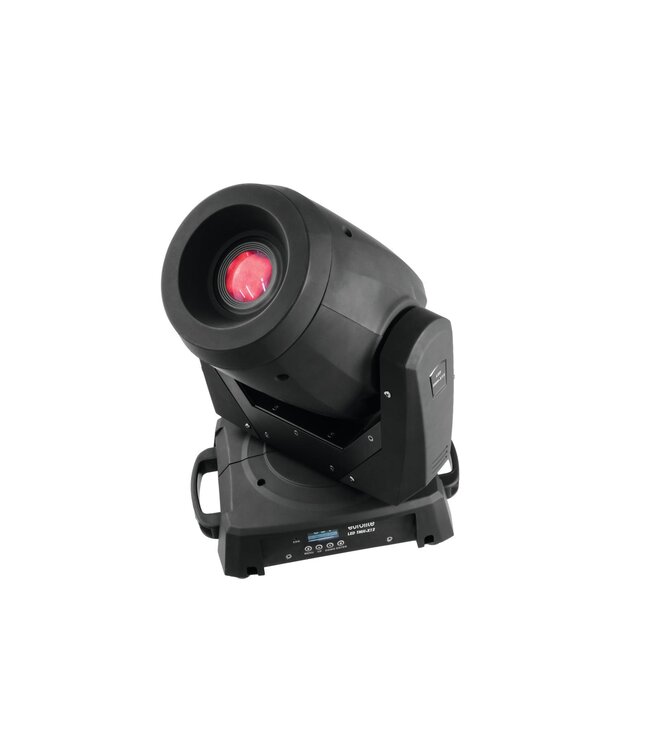

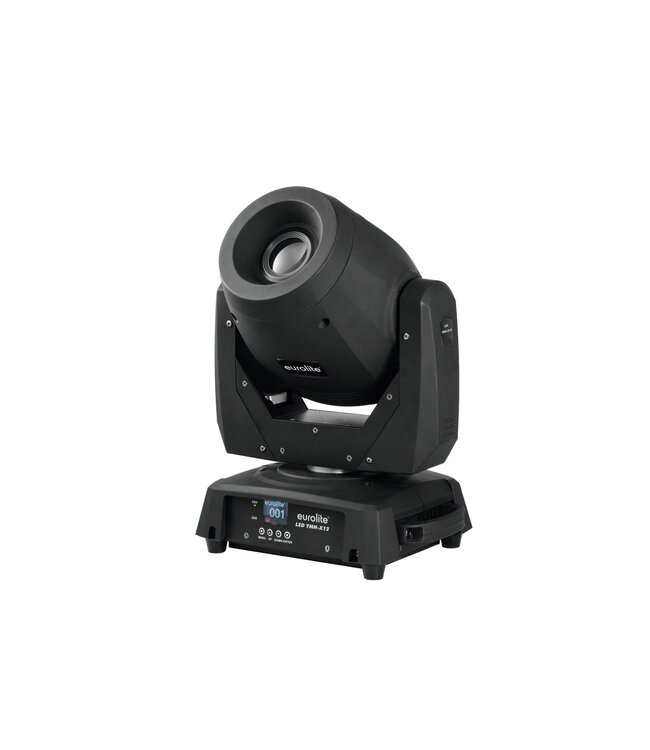

Eurolite TMH-X12
Moving-Head Spot
The 120 W COB LED provides pure power - MSD 250 or MSR 575 can't keep up with these lamps. The high quality of the LED ensures flicker-free projection. The spot is cooled by a silent fan and equipped with a gobo wheel with 7 rotating gobos (plus open), a color wheel with 8 dichroitic color filters (and white) as we/1 as a rotating 3-facet-prism. Regarding control, you can choose between a 13 and a 15 channel DMX mode. Positioning is realized via 16 bit resolution, the beam angle is 12°.
Bright spot with 120 W LED, rotating gobos, color wheel and prism
- Equipped with a white 120 W COB LED
- DMX-controlled operation or stand-alone operation with Master/Slave function
- Internal programs+
- Rotating 3-facet prism
- Exact positioning via 16 bit PAN/TILT movement resolution
- Strobe effect with adjustable speed
- Random strobe effect
- Motorized focus
- Electronic dimmer
- Automatic position correction
- Lightbeam with 12° radiation angle
- Control board with graphic LC display and four operating buttons for adjusting the DMX starting address, PAN/TILT reverse
- P-Con terminals for power linking up to 8 units
- Switch-mode power supply for operation between 100 and 240 volts
- LED: 1 x COB (chip-on-board) 120 W CW
- Color wheel 8 dichroic filters plus open
Rainbow effect with adjustable speed in both directions
- Gobo wheel with rotating gobos, 7 gobos and open
shake effect
- Gobos changeable
- Slot-in gobo system for exchanging gobos without tools
- Can be operated in 13; 15 CH mode
- The device is cooled by cooling fan
- Controlling by Stand-alone; DMX; Sound to light via Microphone
- Is in Light J Software; EUROLITE LED PC-Control 512 software already preprogrammed
- Flicker-free projection
- Effect: Multi beam effect; gobo effect
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
170 W |
| IP classification: |
IP20 |
| Lamp type: |
LED lamp |
| LED: |
1 x COB (chip-on-board) 120 W CW |
| Max. TILT movement: |
Exact positioning (16 bit resolution) 270° Auto position correction (feedback) |
| Max. PAN movement: |
Exact positioning (16 bit resolution) 540° Auto position correction (feedback) |
| Flash rate: |
0 - 18 Hz |
| Equipment: |
Gobo wheel with rotating gobos; Prism 3-fold; Focus motor-driven |
| Color generation: |
Color wheel 8 dichroic filters plus open |
| Gobos: |
Gobo wheel with rotating gobos, 7 gobos and open
Outside diameter 23.5mm
Image diameter 18mm
Shake effect
Gobos changeable
Slot-in gobo system for exchanging gobos without tools |
| DMX channels: |
13; 15 |
| DMX input: |
1 x 3-pin XLR (M) mounting version |
| DMX output: |
1 x 3-pin XLR (F) mounting version |
| Power connection: |
Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided) |
| Cooling: |
Cooling fan |
| Control: |
Stand-alone; DMX; Sound to light via Microphone; Light J Software; EUROLITE LED PC-Control 512 software |
| Color rendering index (CRI) more than: |
80 Ra |
| Beam angle: |
12° |
| Beam angle (1/2 peak): |
12° |
| Illuminance in Lux (lx): |
CW 3m: 9502 lx, 6m: 2436 lx |
| Housing color: |
Black |
| Dimension: |
Width: 33 cm
Depth: 32 cm
Height: 40 cm |
| Weight: |
11.35 kg |
