Spot movinghead - statisch en roterende gobo's -kleurenwiel - prisma - focus Lees meer.

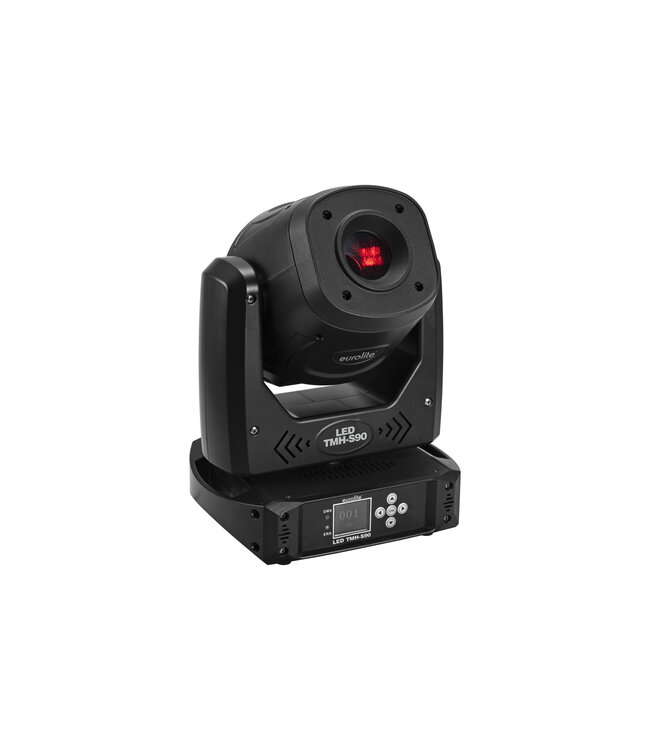

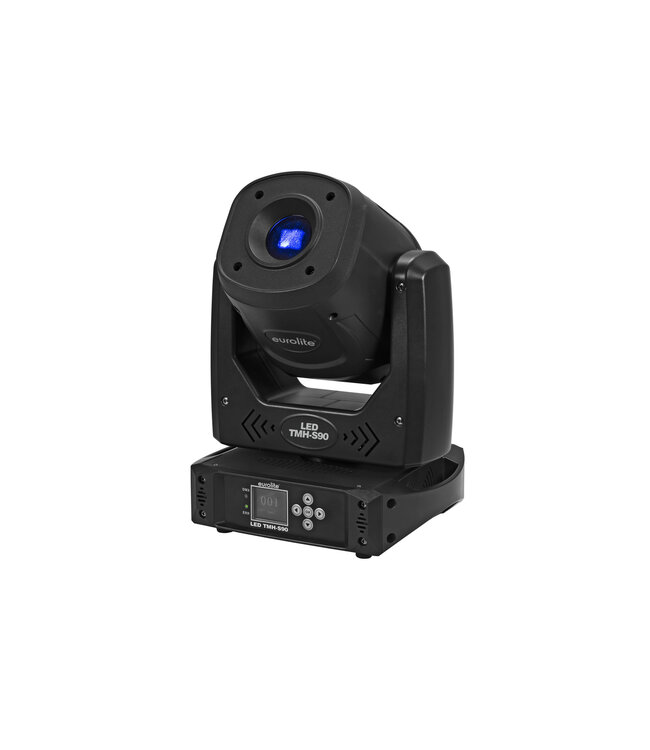

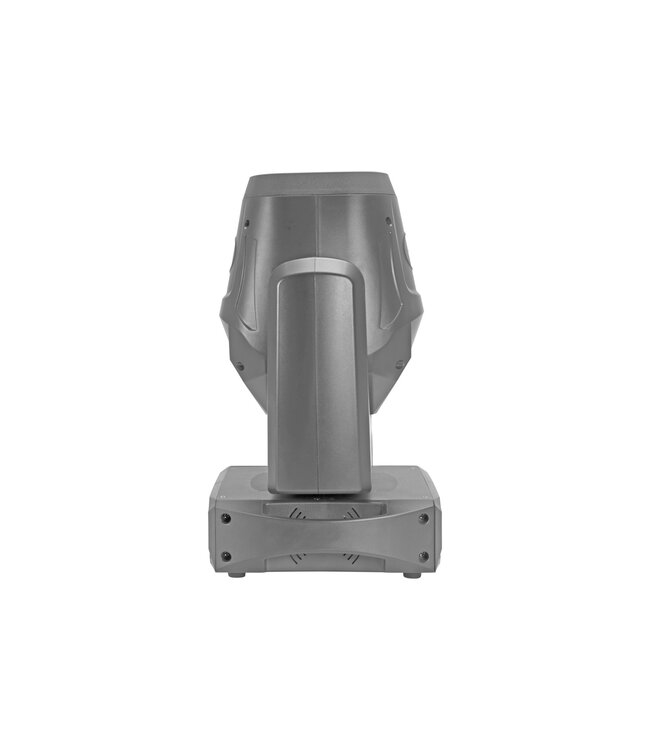

LED moving head spot with color wheel, static and rotating gobo wheel, prism and focus
Power supply: | 100-240 V AC, 50/60 Hz |
Power consumption: | 140 W |
IP classification: | IP20 |
Fuse: | 5 x 20 mm, T 2 A |
Lamp type: | LED lamp |
LED: | 1 x COB (chip-on-board) 90 W CW |
Max. TILT movement: | Exact positioning (16 bit resolution) 200° Auto position correction (feedback) |
Max. PAN movement: | Exact positioning (16 bit resolution) 540° Auto position correction (feedback) |
Flash rate: | 2 - 30 Hz |
Equipment: | Prism 3-fold; gobo wheel with rotating gobos rotating; gobo wheel with static gobos; Focus motor-driven; color wheel |
Color generation: | Color wheel 1 x 7 dichroic filters plus open |
Gobos: | Gobo wheel with static gobos, 6 gobos,1 multi color gobo and open Shake effect Gobo wheel with rotating gobos, 6 gobos and open Outside diameter 21.8mm Image diameter 16mm Shake effect Gobos changeable Slot-in gobo system for exchanging gobos without tools |
DMX channels: | 15 |
DMX input: | 3-pin XLR (M) mounting version |
DMX output: | 3-pin XLR (F) mounting version |
Power connection: | Mains input P-Con (blue), mounting version Power supply cord with safety plug |
Cooling: | Cooling fan |
Control: | DMX; Sound to light via Microphone; Stand-alone; QuickDMX via USB (optional); Master/slave function; EASY SHOW |
Beam angle: | 12° |
Beam angle (1/2 peak): | 12° |
Illuminance in Lux (lx): | CW 1m: 52772 lx, 3m: 6198 lx, 6m: 1543 lx |
Housing color: | Black |
Dimension: | Width: 25.0 cm Depth: 20.5 cm Height: 35.0 cm |
Weight: | 6.20 kg |
