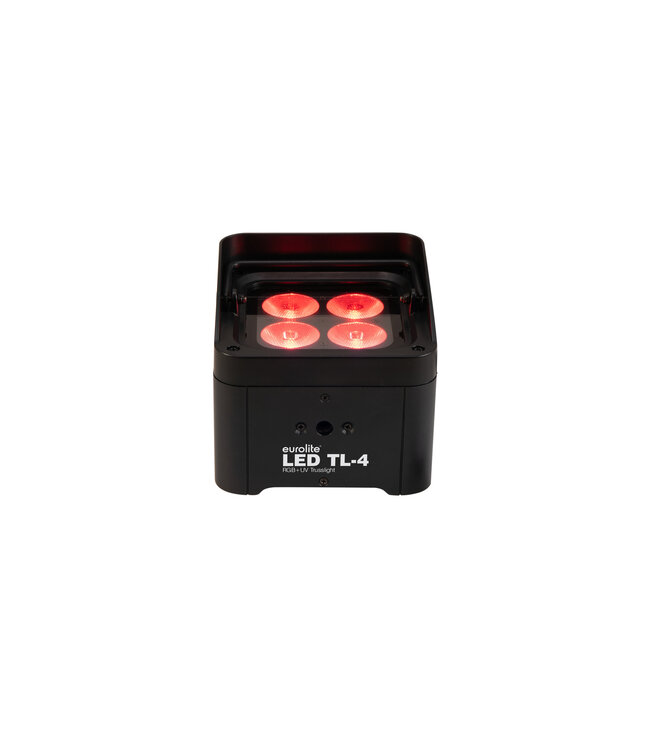

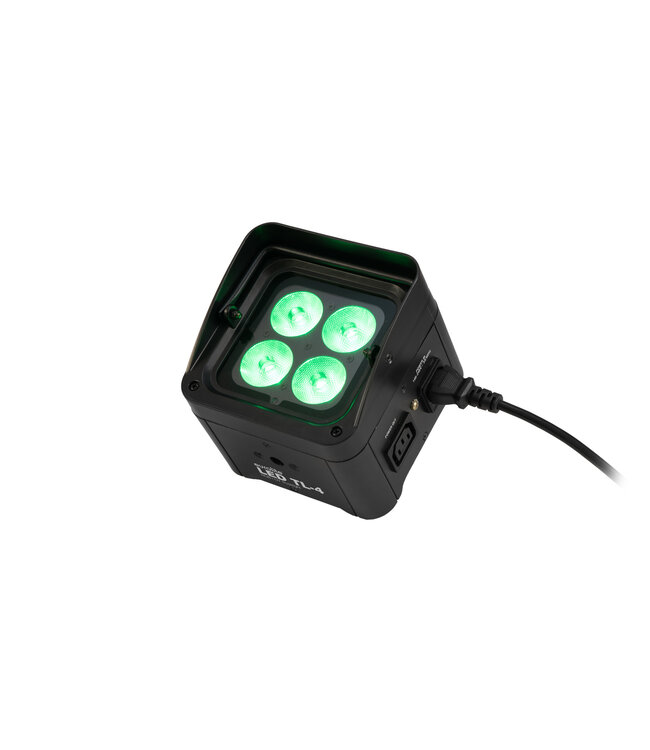

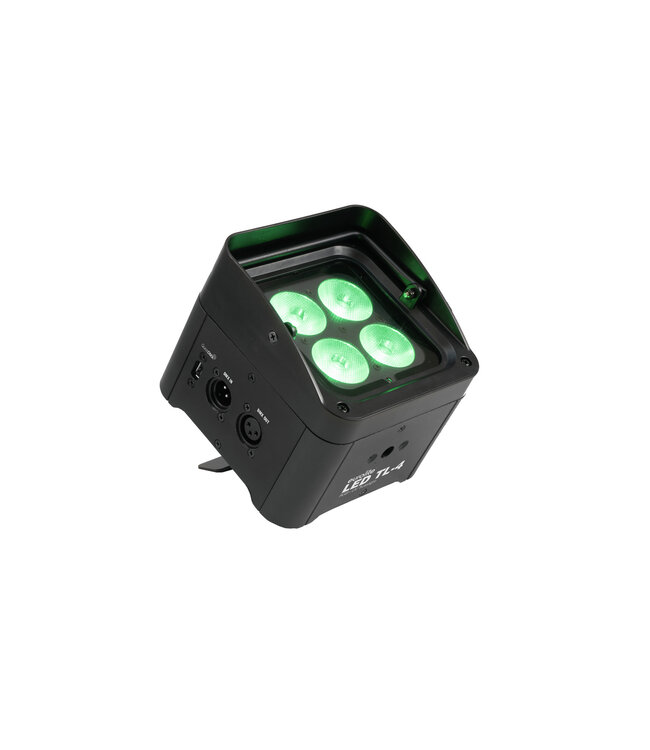

Variable truss light and uplight with bright 4 x 8 W RGB+UV LED
- Compact and bright, making it perfect for truss installation
- Equipped with 4 x 8 W 4in1 LED in the colors red, green, blue and UV
- DMX-controlled operation or stand-alone operation with Master/Slave function
- Built-in auto and music show programs
- Direct color selection for 18 preset colors
- Functions: static colors, stepless RGB+UV color mixture, internal programs, dimmer, strobe effect with variable speed, Master/Slave operation
- Flicker-free projection
- Supports QuickDMX - the wireless DMX system from Eurolite
- Built-in phantom-powered USB port for QuickDMX receivers (accessories)
- DMX control via any standard DMX controller
- Addressing via control panel with 4-digit LED display
- Convenient wireless control via included IR remote control EUROLITE IR-7
- Ideal for booth construction, stages and anywhere trussing is used
- Perfect for ALUTRUSS 4-POINT SYSTEM QUADLOCK
- Hanging as well as standing installation possible
- M10 threaded insert for suspended installation
- Folding foot adjustable in 5 steps for flexible placement
- Additional rubber feet when the spot shall be positioned on the floor
- IEC terminals for power linking up to 8 units
- Switch-mode power supply for operation between 100 and 240 volts
- LED: 4 x high-power 8 W 4in1 QCL RGB/UV (homogenous color mix)
- Can be operated in 3; 4; 4; 8 CH mode
- The device is cooled by passive convection
- Controlling by DMX; QuickDMX via USB (optional); Sound to light via Microphone; IR remote control included
- Is in Light J Software; EUROLITE LED PC-Control 512 software; EASY SHOW; LED EASY OPERATOR DELUXE already preprogrammed
Power supply: |
100-240 V AC, 50/60 Hz |
Power consumption: |
15 W |
IP classification: |
IP20 |
LED: |
4 x high-power 8 W 4in1 QCL RGB/UV (homogenous color mix) |
Flash rate: |
0 - 20 Hz |
DMX channels: |
3; 4; 4; 8 |
DMX input: |
1 x USB, type A 1 x 3-pin XLR (M) mounting version |
DMX output: |
1 x 3-pin XLR (F) mounting version |
Cooling: |
Passive convection |
Control: |
DMX; QuickDMX via USB (optional); Sound to light via Microphone; IR remote control included; Light J Software; EUROLITE LED PC-Control 512 software; EASY SHOW; LED EASY OPERATOR DELUXE |
Beam angle: |
13° |
Beam angle (1/2 peak): |
13° |
Beam angle (1/10 peak): |
30° |
Housing color: |
Black |
Dimensions: |
Length: 15,5 cm Width: 14,5 cm Height: 13,0 cm |
Weight: |
1,56 kg |
