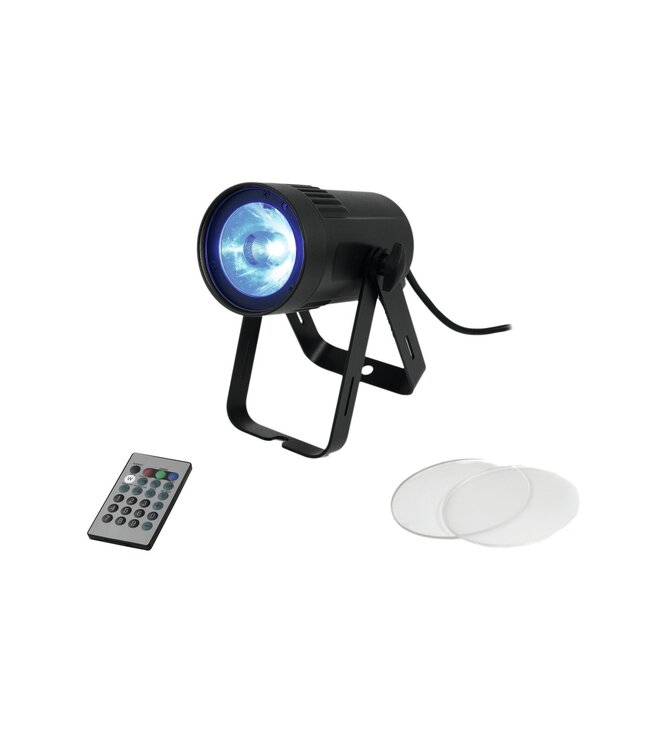

Pinspot with 15 W COB LED, beam angles 4°/6°/20° (frost filter)
- Additional frost filter provides a wide, soft and homogeneous light
- 1 powerful LED 15 W high-power 4in1 QCL RGBW (homogenous color mix)
- 4 integrated show programs
- The device is cooled by passive convection cooling
- Control via stand-alone; DMX; IR remote control; Sound to light via Microphone; RDM; Master/slave function
- Flicker-free
- With a beam angle of 4°
- With double bracket
- OLED display
- Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic; Dimmer speed (step response) adjustable
- Strobe effect
- Preprogrammed in Light´J; LED PC-Control 512; EASY SHOW 1; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3
- Silent operation
- Mains input and output for power linking up to 8 units
- For application areas such as: Clubs/dancing school; Party room; mobile djs / entertainer; restaurants, bars and hotels
- Application possibility: Standing; suspended; on stand
Package contents

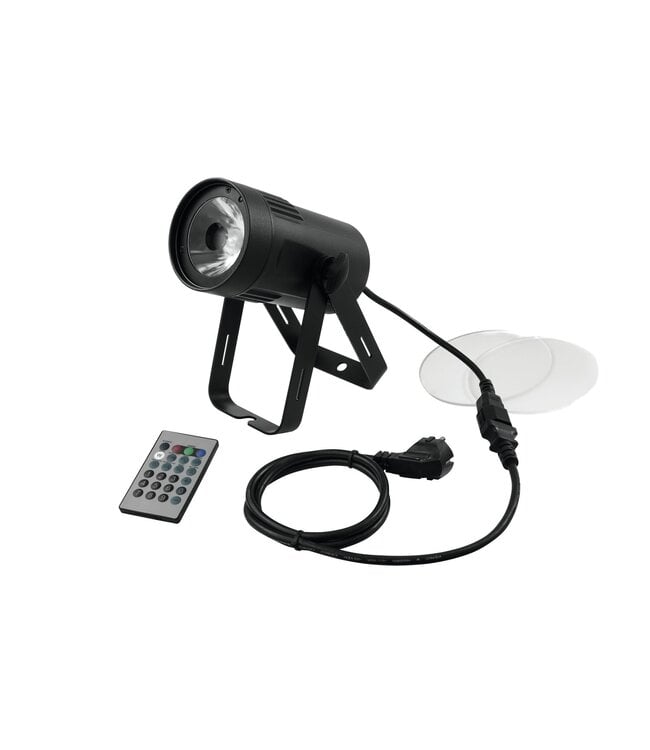

- 1 x spotlight, 1 x power cord, 1 x remote control, 1 x battery, 2 x diffusor cover, 1 x lamp clamping ring, 1 x user manual
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
17 W |
| IP classification: |
IP20 |
| Protection class: |
Protection class I |
| Power connection: |
Mains input via IEC (M) power supply cord with safety plug (provided) |
| Power output: |
1 x IEC (F) |
| Lamp type: |
LED lamp |
| LED: |
1 x 15 W high-power 4in1 QCL RGBW (homogenous color mix) |
| DMX channels: |
4; 6; 7 |
| DMX input: |
1 x 3-pin XLR (M) mounting version |
| DMX output: |
1 x 3-pin XLR (F) mounting version |
| Cooling: |
Passive convection cooling |
| Control: |
Stand-alone; DMX; IR remote control; Sound to light via Microphone; RDM; Master/slave function |
| Preprogrammed in: |
Light´J; LED PC-Control 512; EASY SHOW 1; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3 |
| Projection: |
Flicker-free |
| Beam angle: |
4° |
| Beam angle (1/2 peak): |
4°
6°
20° |
| Beam angle (1/10 peak): |
7°
11°
35° |
| Housing color: |
Black |
| Attachment system: |
Double bracket |
| Display type: |
OLED display |
| Material: |
Aluminum casting |
| Dimensions: |
Width: 13,5 cm
Depth: 19 cm
Height: 22 cm |
| Weight: |
1,42 kg |
| Noise classification: |
Class 0 (no noise at all) |
| Mounting bracket |
| Diameter mounting holes: |
1 x Ø10mm; 2 x Ø3mm |
| Material: |
Aluminum, 3 mm |
| Power cord |
| Cable construction: |
3 x 1,0 mm² H05VV-F |
| Cable length: |
Approx. 1,3 m |
| Remote control |
| Battery: |
1 x Button cell 3.0 V CR2025 lithium manganese built-in |
| Diffusor cover |
| Color: |
Frost |
| Dimensions: |
Width: 2 mm
Diameter: Ø 8,2 cm |
| Lamp clamping ring |
| Material: |
Metal, 2 mm |
| Color: |
Black |
