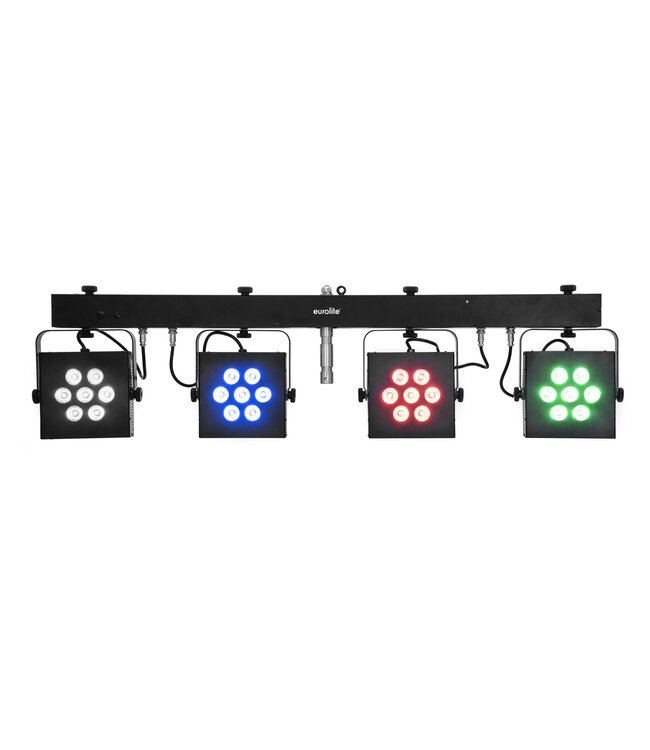

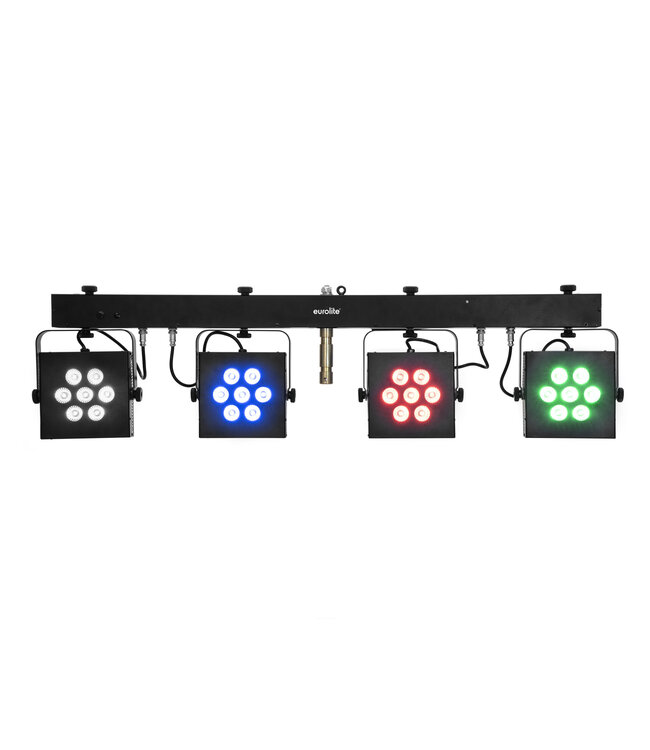

Bar with 4 powerful RGBAW/UV spots, QuickDMX support, IR remote control and carrying bag
- DMX light set with four slim-line LED spots
- 7 high-power 10 W RGBAW/UVLEDs (6in1) per spot
- erfect solid and pastel colors and stunning blacklight effects thanks to RGBAW/UV color mixing
- Color and brightness individually adjustable for each spot directly at the control unit
- Brand-new software design with smart programs
- Ultra-light ideally suited for mobile use

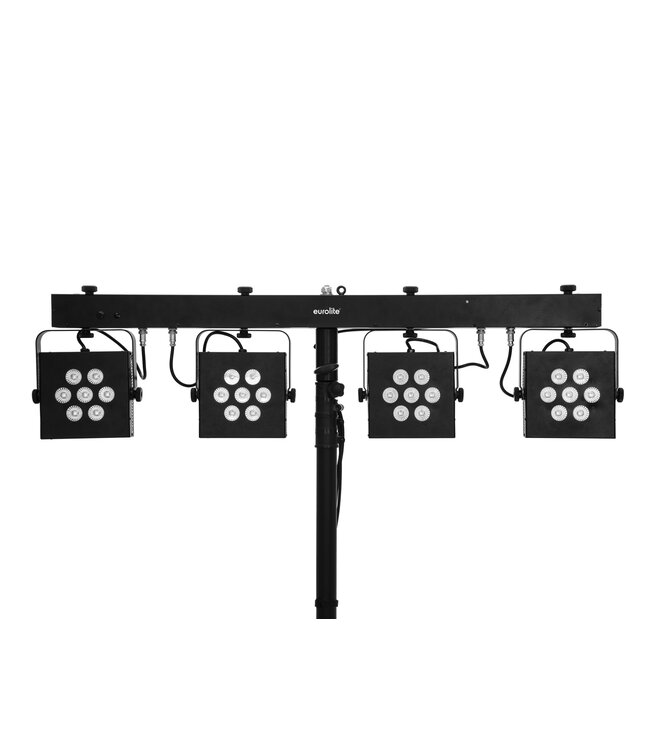

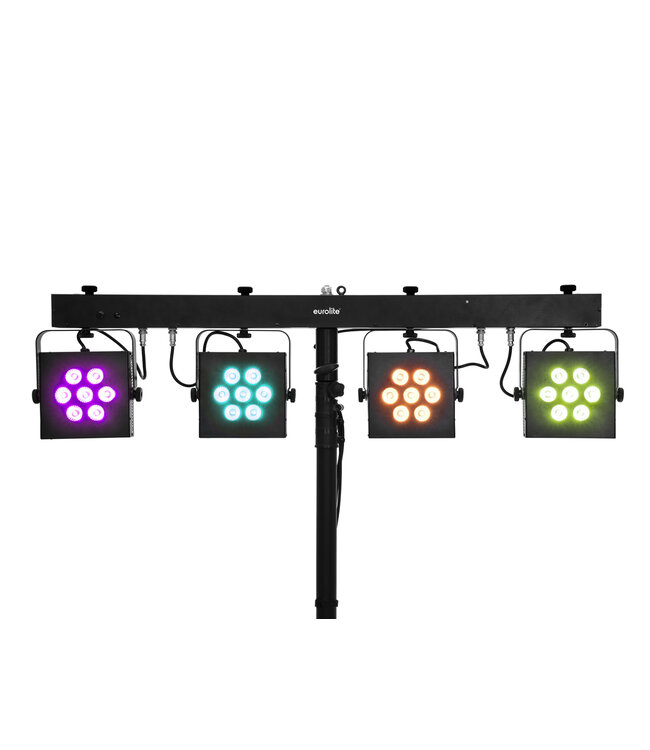

- Crossbar with integrated DMX control unit and TV spigot for tripod installation
- Quick truss installation via quick-lock omega holders
- Spots movable and tiltable, and with 19° beam angle
- Comes pre-assembled with practical transport bag
- Convenient control via included IR remote control or optional wireless foot switch
- Auto, music, color, master/slave, and DMX mode
- 20 built-in auto and music show programs
- Direct color selection for 21 preset colors
- Addressing and setting via control panel with 4-digit LED display
- Supports QuickDMX - the wireless DMX system by Eurolite
- Built-in phantom-powered USB port for QuickDMX receivers (accessories)
- Mounting points and power outlets for additional fixtures
- P-Con terminals for power linking up to 8 units
- LED: Spot 7 x high-power 10 W 6in1 HCL RGBWA/UV (homogenous color mix)
- Can be operated in 2; 4; 6; 10; 24; 28 CH mode
- The device is cooled by passive convection
- Controlling by Stand-alone; DMX; Wireless footswitch (optional); QuickDMX via USB (optional); IR remote control; Sound to light via Microphone
- Is in EASY SHOW; Light J Software; EUROLITE LED PC-Control 512 software; LED EASY OPERATOR DELUXE already preprogrammed
- For application areas such as: Small lender; Lender; Wedding/gala
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
225 W |
| IP classification: |
IP20 |
| Power connection: |
Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided) |
| Cable construction: |
3 x 1,0 mm² H05VV-F |
| Cable length: |
3 m |
| Power output: |
2 x IEC connector (F) mounting version fused
1 x P-Con (gray), mounting version Bypass |
| Fuse: |
Device fuse 5 x 20 mm, T 2,5 A Fuse replaceable
Power output fuse per channel 5 x 20 mm, T 5 A Fuse replaceable |
| Lamp type: |
LED lamp |
| LED: |
Spot 7 x high-power 10 W 6in1 HCL RGBWA/UV (homogenous color mix) |
| DMX channels: |
2; 4; 6; 10; 24; 28 |
| DMX input: |
1 x 3-pin XLR (M) mounting version |
| DMX output: |
1 x 3-pin XLR (F) mounting version |
| Cooling: |
Passive convection |
| Control: |
Stand-alone; DMX; Wireless footswitch (optional); QuickDMX via USB (optional); IR remote control; Sound to light via Microphone; EASY SHOW; Light J Software; EUROLITE LED PC-Control 512 software; LED EASY OPERATOR DELUXE |
| Beam angle: |
19° |
| Beam angle (1/2 peak): |
19° |
| Beam angle (1/10 peak): |
35° |
| Housing color: |
Black |
| Attachment system: |
TV spigot Ø 28mm |
| Dimensions: |
Width: 1,28 m
Depth: 8 cm
Height: 29 cm |
| Weight: |
11,14 kg |
