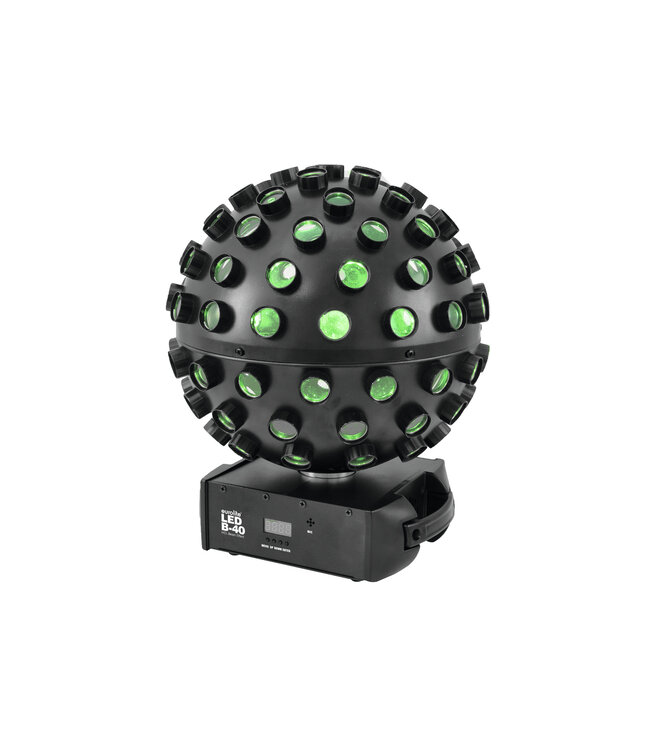

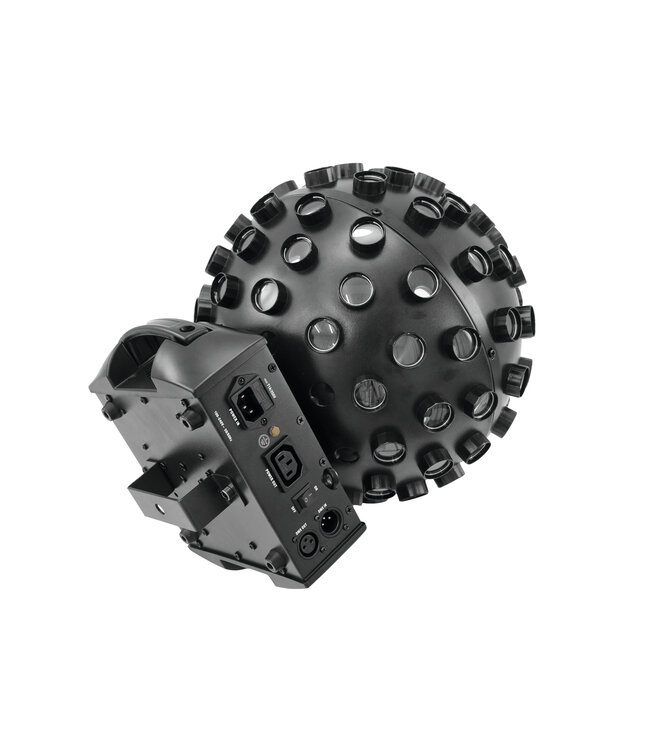

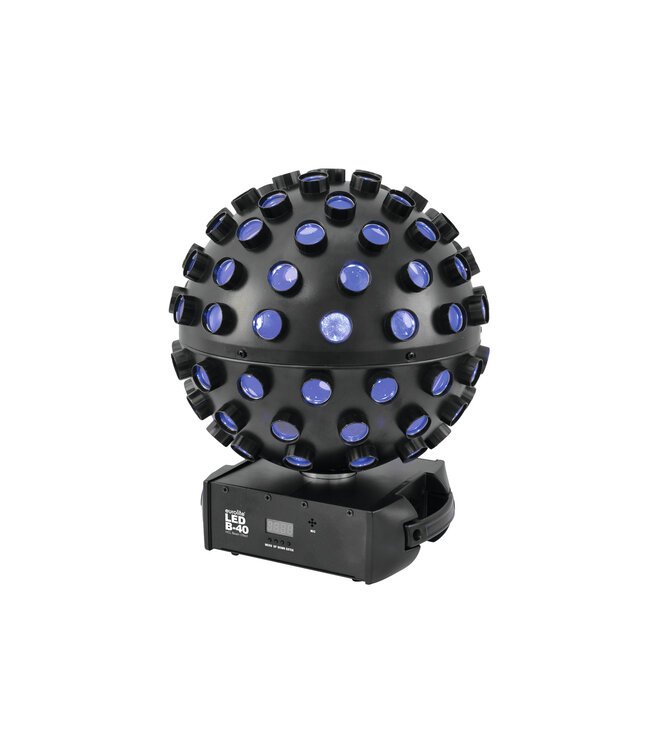

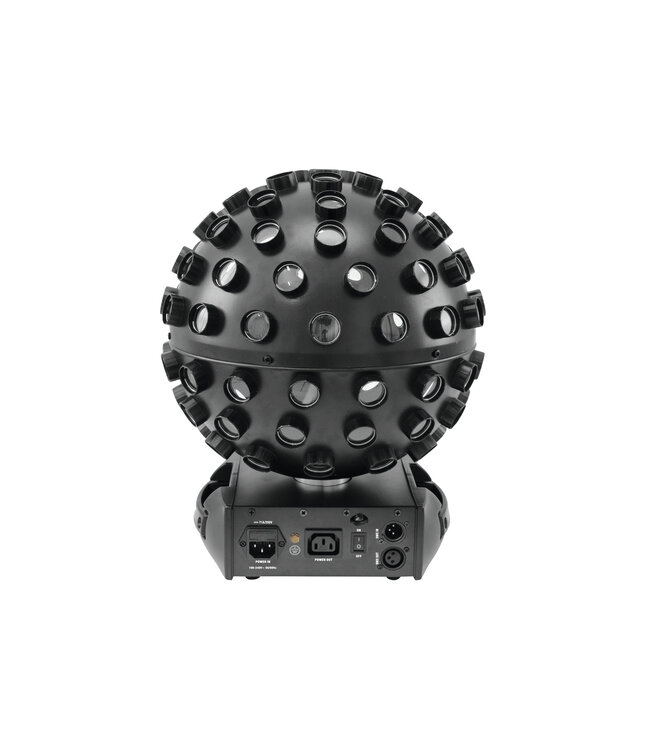

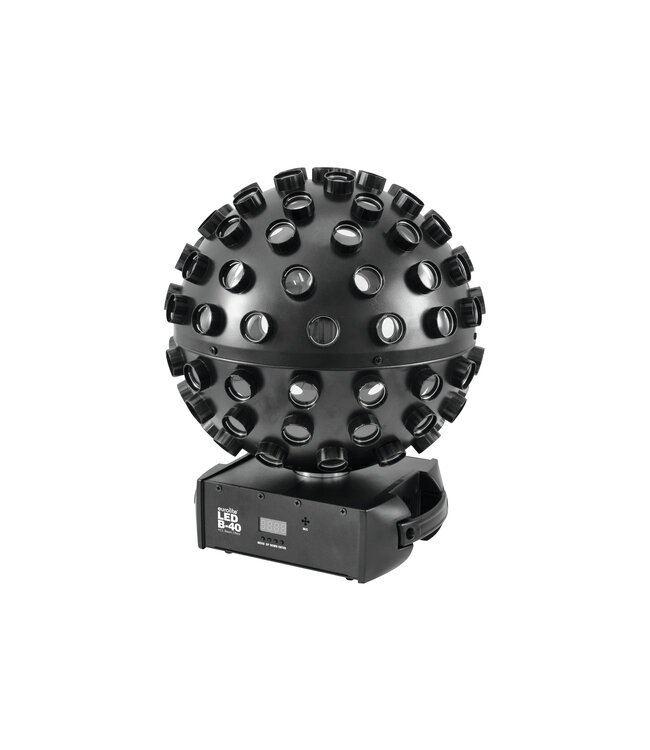

EUROLITE LED B-40 HCL Beam Effect MK2
Romantic light show in beautiful RGBAW colors plus UV light - this LED disco ball makes it possible!
First class colours
The LED B-40 HCL by Eurolite is a fascinating mirror ball simulator fitted with five powerful 12-watt hex-color LEDs projecting colorful beams and a precision motor that creates a romantic atmosphere at slow rotation speed. Thanks to 6-color mixing particularly beautiful colors are possible: In addition to red, green and blue, white and amber provide great pastel and yellow tones. Adding UV to the mix makes for unique color moods.
Various control options
The LED B-40 HCL offers a direct selection for 25 preset colors and comes with 4 show programs selectable in automatic or sound-controlled mode. It can be operated in master, slave and stand-alone modes or via DMX. A clear display even allows you to easily set a color and rotation speed without any controller.
Everywhere in use
Of course, the LED B-40 HCL is delivered ready to use with plug and power cord together with a bracket for truss mounting. Placing the disco ball on a stand as a centerpiece also yields great effects. Thanks to its modern technology and straightforward handling the LED B-40 HCL is an ideal choice for clubs, bars, discos and mobile applications of any kind.
LED beam effect with RGBAW+UV color mixing
- 5 high-power 12 W RGBAW+UV LEDs (6in1)
- Precision lenses fill the room with razor-sharp beams in RGBAW+UV colors
- 4 built-in auto and music show programs
- Rotation speed variably adjustable
- Direct color selection for 25 preset colors
- Stepless RGBAW+UV color blend, color change, color fade, dimmer and strobe effect
- Addressing and setting via control panel with 4-digit LED display
- Mounting bracket
- IEC terminals for power linking up to 8 units
- Switch-mode power supply for operation between 100 and 240 volts
- LED: 5 x high-power 12 W 6in1 HCL RGBWA/UV
- Can be operated in 5; 11 CH mode
- The device is cooled by super silent fan
- Controlling by DMX; Sound to light via Microphone; Master/slave function
- Is in Light J Software; EUROLITE LED PC-Control 512 software; EASY SHOW already preprogrammed
- Effect: Multi beam effect; UV
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
50 W |
| IP classification: |
IP20 |
| Protection class: |
Class I |
| Power output: |
IEC connector (F) mounting version |
| Lamp type: |
LED lamp |
| LED: |
5 x high-power 12 W 6in1 HCL RGBWA/UV |
| Flash rate: |
0 - 20 Hz |
| DMX channels: |
5; 11 |
| DMX input: |
3-pin XLR (M) mounting version |
| DMX output: |
3-pin XLR (F) mounting version |
| Power connection: |
Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided) |
| Cooling: |
Super silent fan |
| Control: |
DMX; Sound to light via Microphone; Master/slave function; Light J Software; EUROLITE LED PC-Control 512 software; EASY SHOW |
| Housing color: |
Black |
| Display type: |
4 digits 7-segment LED display |
| Dimension: |
Width: 32 cm
Depth: 32 cm
Height: 38 cm |
| Weight: |
4.15 kg |
