RDM-capable DMX splitter, 1 in/8 out with signal boost
- DMX splitter for splitting one DMX input signal to 8 DMX outputs
- Connections: 2 x DMX input (parallel), 2 x DMX feed-through output (parallel), 8 x DMX output

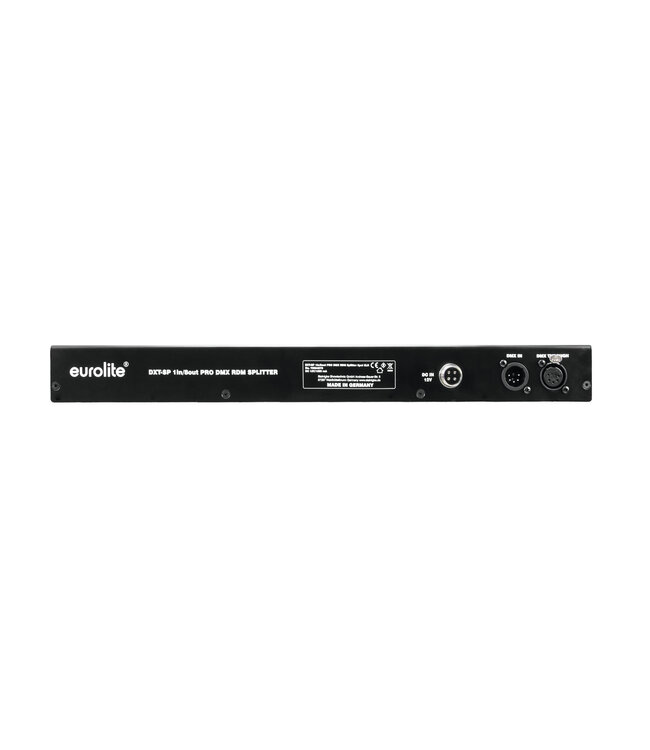

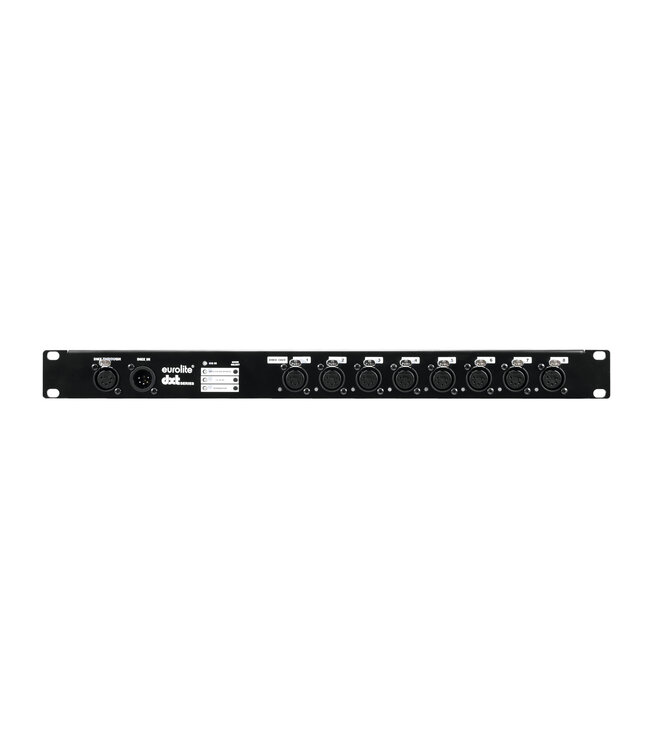

- Input and feed-through output are duplicated on the front and rear panel and connected in parallel
- Supports RDM for bidirectional communication over the DMX line
- Switchable filter mode allows all RDM data to be filtered out in order to prevent problems when using fixtures intolerant of RDM
- Bypass function to process signals from older devices similar to DMX signals
- Output frequency adjustable: 22/44 Hz
- DMX fail mode selectable: hold, blackout, null
- Switchable termination resistor
- Input and outputs XLR 5-pin (Neutrik)
- Outputs galvanically isolated
- Each DMX output with independent driver and status indicator
- Each DMX output can be connected to 32 DMX devices
- DMX feed-through for up to 32 further DMX devices
RDM For bidirectional communication over the DMX line
RDM switchable to prevent problems when using fixtures without RDM
- (19") 48.3 cm rack installation 1 U
- Made in Germany
| Power supply: |
100-240 V AC, 50/60 Hz
12 V DC 1 A |
| Power consumption: |
6 W |
| DMX input: |
2 x 5-pin XLR (M) mounting version |
| DMX output: |
2 x 5-pin XLR (F) mounting version Bypass
8 x 5-pin XLR (F) mounting version Separate (galvanic) with independent driver and status indicator |
| Power connection: |
Power supply cord with AC adapter (provided) |
| DMX features: |
DMX feed-through for up to 32 further DMX devices
RDM For bidirectional communication over the DMX line
RDM switchable to prevent problems when using fixtures without RDM |
| Use of brands: |
Built with NEUTRIK connector |
| Housing design: |
(19") 48.3 cm rack installation 1 U |
| Dimension: |
Width: 48.3 cm
Depth: 10 cm
Height: 4.43 cm |
| Weight: |
1.92 kg |
