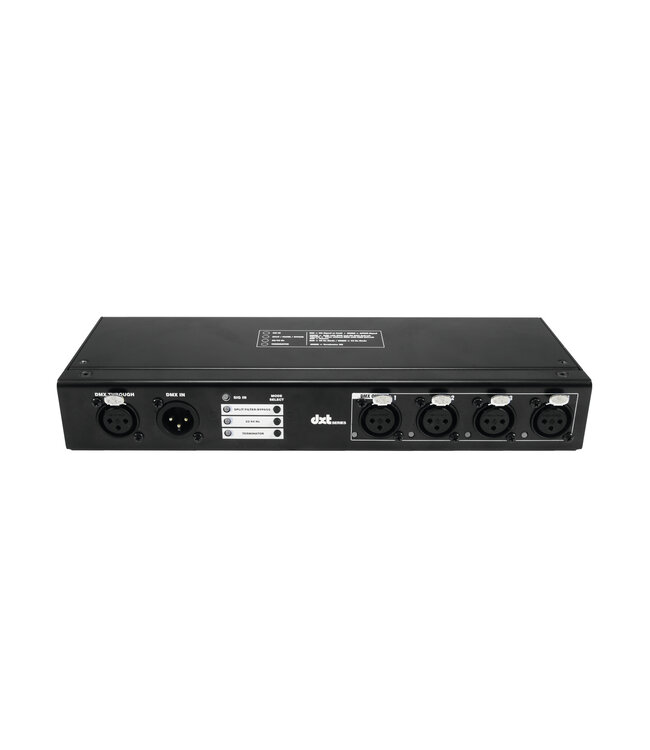

RDM-capable DMX splitter, 1 in/4 out with signal boost
- DMX splitter for splitting one DMX input signal to 4 DMX outputs
- Connections: 2 x DMX input (parallel), 2 x DMX feed-through output (parallel), 4 x DMX output

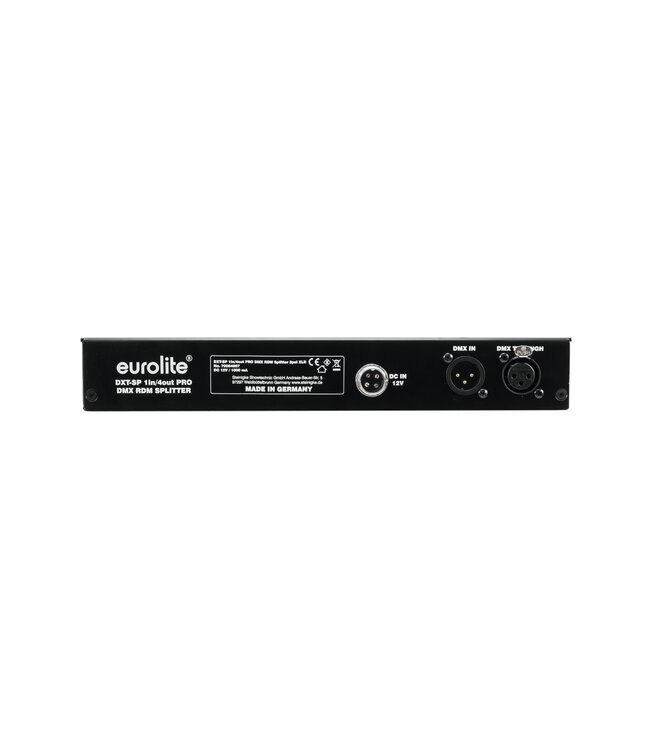

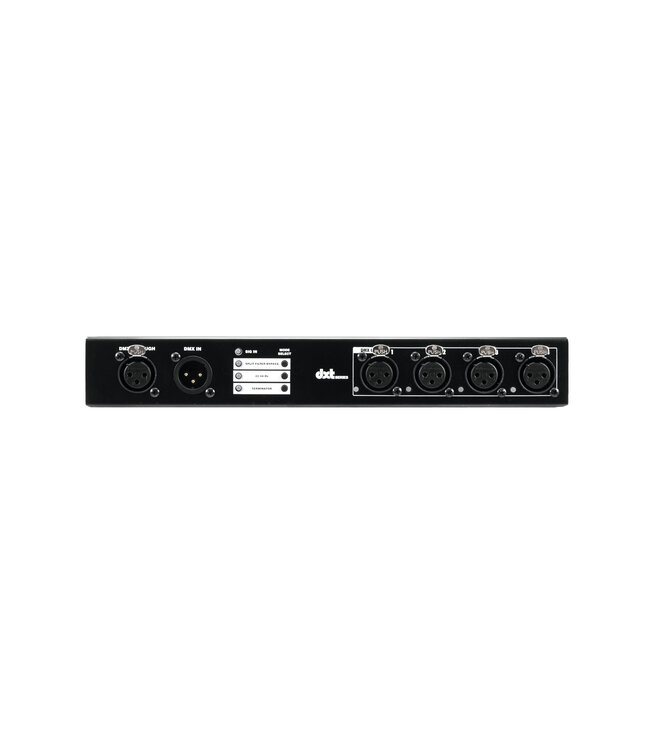

- Input and feed-through output are duplicated on the front and rear panel and connected in parallel
- Supports RDM for bidirectional communication over the DMX line
- Switchable filter mode allows all RDM data to be filtered out in order to prevent problems when using fixtures intolerant of RDM
- Bypass function to process signals from older devices similar to DMX signals
- Output frequency adjustable: 22/44 Hz
- DMX fail mode selectable: hold, blackout, null
- Switchable termination resistor
- Input and outputs XLR 3-pin (Neutrik)
- Outputs galvanically isolated
- Each DMX output with independent driver and status indicator
- Each DMX output can be connected to 32 DMX devices
- Powered via included PSU
- Rack installation via optional rack mounting kit (item 70064872)
- DMX fail mode (hold, blackout, null)
DMX feed-through for up to 32 further DMX devices
RDM For bidirectional communication over the DMX line
RDM switchable to prevent problems when using fixtures without RDM
- Made in Germany
| Power supply: |
100-240 V AC, 50/60 Hz
12 V DC 1 A |
| Power consumption: |
3.6 W |
| DMX input: |
2 x 3-pin XLR (M) mounting version |
| DMX output: |
4 x 3-pin XLR (F) mounting version Separate (galvanic) with independent driver and status indicator
2 x 3-pin XLR (F) mounting version Bypass |
| Power connection: |
Mains input 4-pin screw plug connector (m) mounting version Power supply cord with AC adapter (provided) |
| DMX features: |
DMX fail mode (hold, blackout, null)
DMX feed-through for up to 32 further DMX devices
RDM For bidirectional communication over the DMX line
RDM switchable to prevent problems when using fixtures without RDM |
| Use of brands: |
Built with NEUTRIK connector |
| Dimension: |
Width: 27.5 cm
Depth: 10 cm
Height: 4.1 cm |
| Weight: |
1.21 kg |
