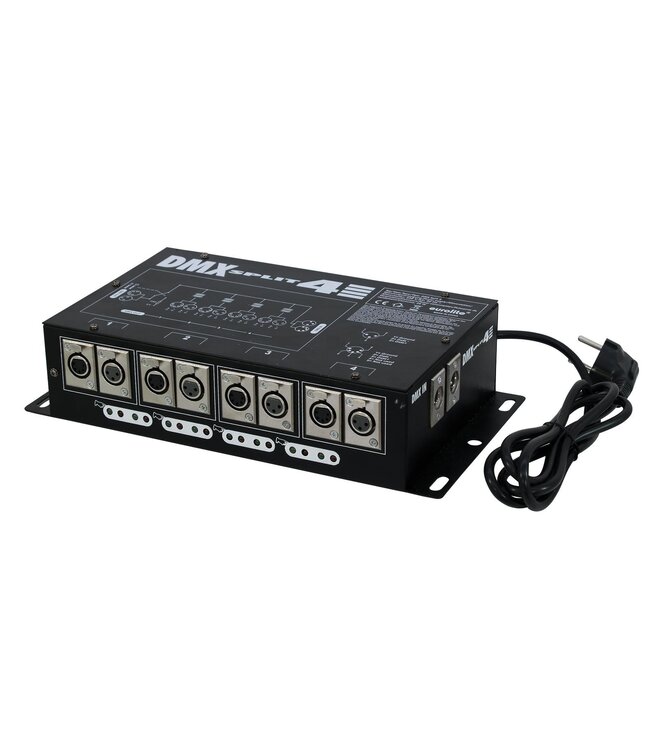

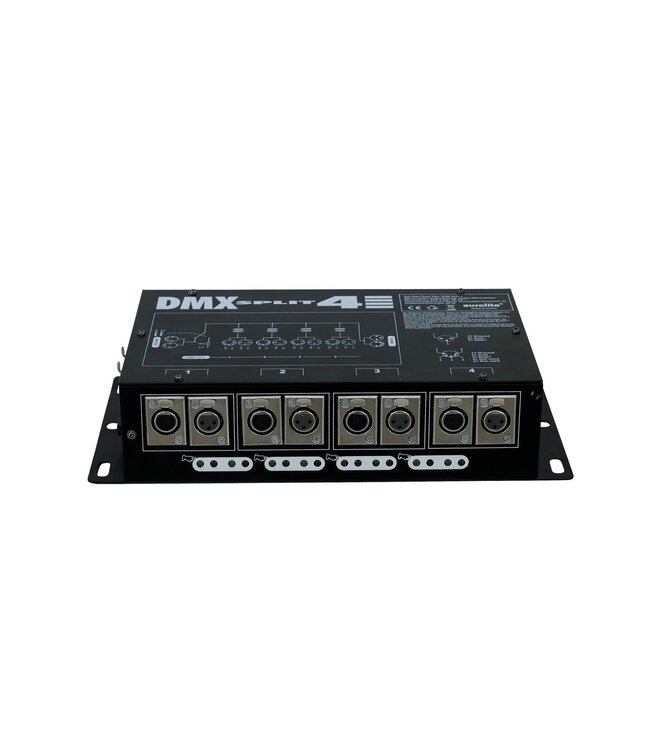

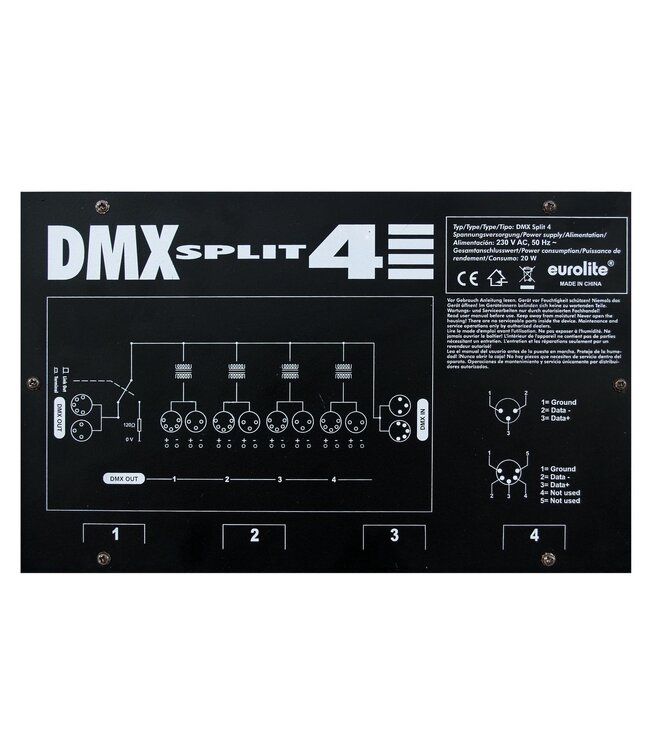

Splitter with 4 galvanized isolated outputs, 3-pin & 5-pin XLR sockets
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 20 W |
| DMX input: | 1 x 3-pin XLR (M) mounting version 1 x 5-pin XLR (M) mounting version |
| DMX output: | 8 x 3-pin XLR (F) mounting version Separate (galvanic) with independent driver and status indicator 8 x 5-pin XLR (F) mounting version Separate (galvanic) with independent driver and status indicator 1 x 5-pin XLR (F) mounting version Bypass 1 x 3-pin XLR (F) mounting version Bypass |
| Power connection: | Fixed Power supply cord with safety plug |
| Control elements: | Bypass/terminating resistor Schalter, power switch |
| Dimension: | Width: 32.5 cm Depth: 19 cm Height: 8 cm |
| Weight: | 2.33 kg |
