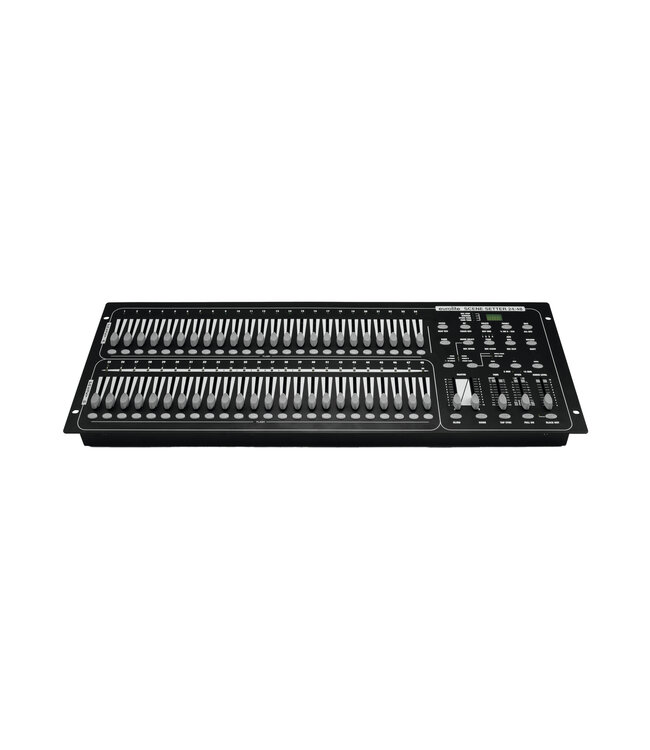

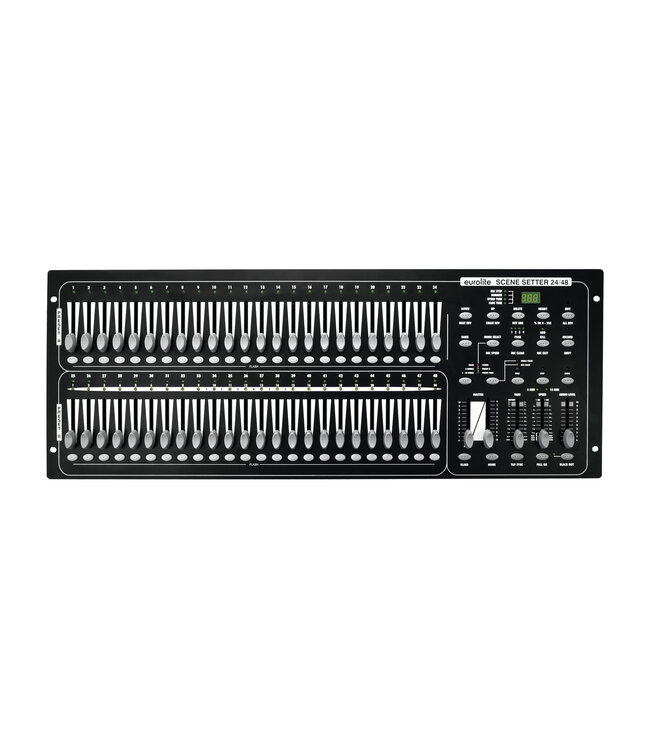

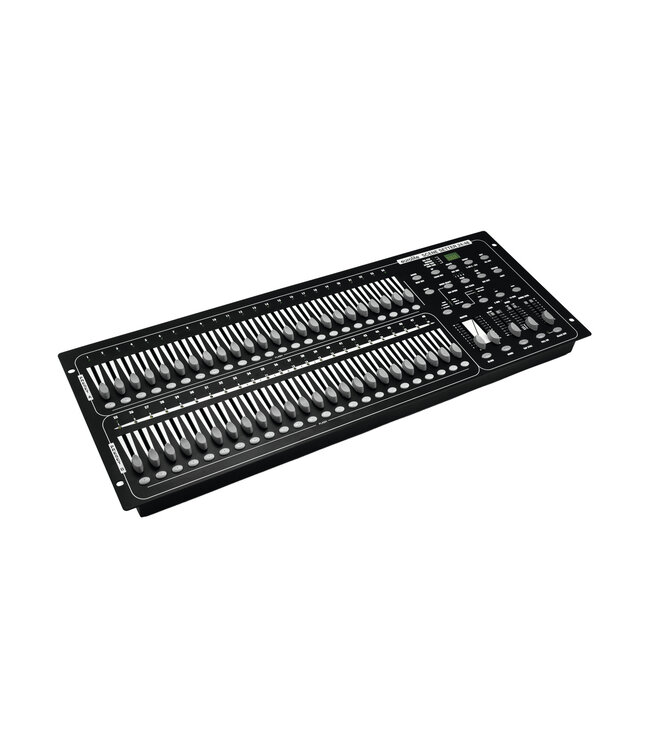

Theater light console for 48 DMX channels, brightness control for each scene
- 48 control channels
- 96 memorizable programs via 4 pages
- 24 scenes can be called up directly via the faders
- Blackout function
- Mix and single chase function
- Blind/home function
- Supports standard MIDI
- 3-pin XLR connector with polarity selector
- Footswitch control possible
- Desktop console
- Rack installation (27") with 6 units
- Can transmit up to 48 DMX channels
- Controlling by DMX; Sound to light via Microphone; Sound to light via RCA (f) mounting version
- (19") 48.3 cm rack installation 6 U
| Power supply: |
230 V AC, 50 Hz
12 V DC 500 mA |
| Power consumption: |
8.00 W |
| IP classification: |
IP20 |
| DMX channels: |
Output 48 |
| DMX output: |
1 x 3-pin XLR (F) mounting version |
| Power connection: |
Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided) |
| Control: |
DMX; Sound to light via Microphone; Sound to light via RCA (f) mounting version |
| Housing color: |
Black |
| Control elements: |
DMX polarity selector, power switch |
| Color: |
Black |
| Housing design: |
(19") 48.3 cm rack installation 6 U |
| Dimension: |
Width: 71 cm
Depth: 26.4 cm
Height: 9 cm |
| Weight: |
6.05 kg |
