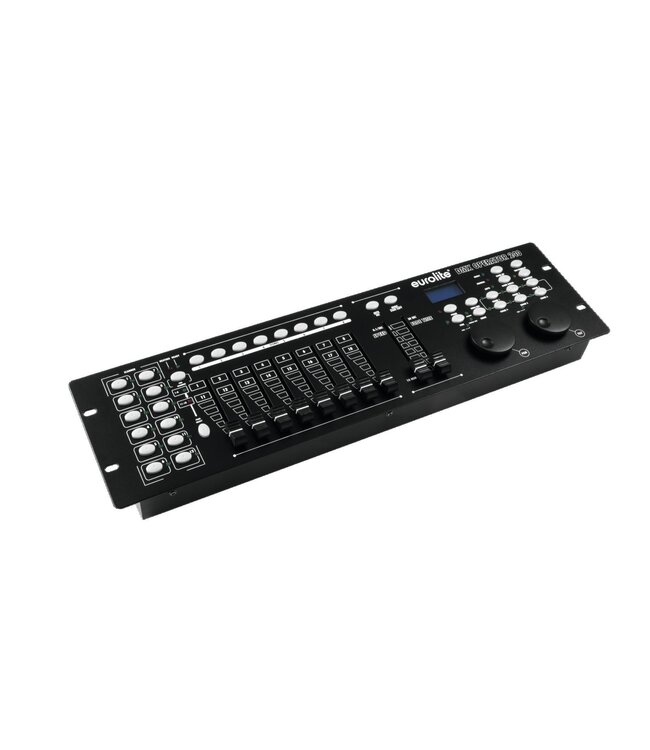

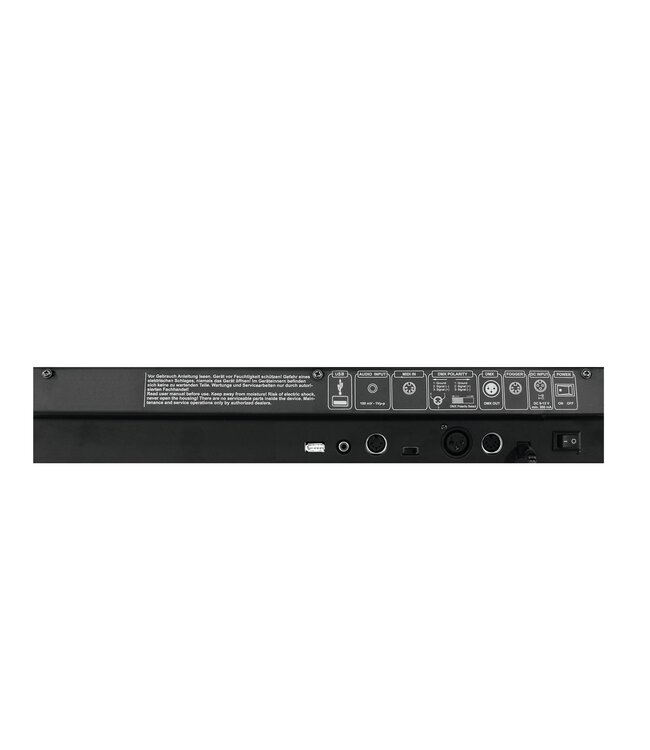

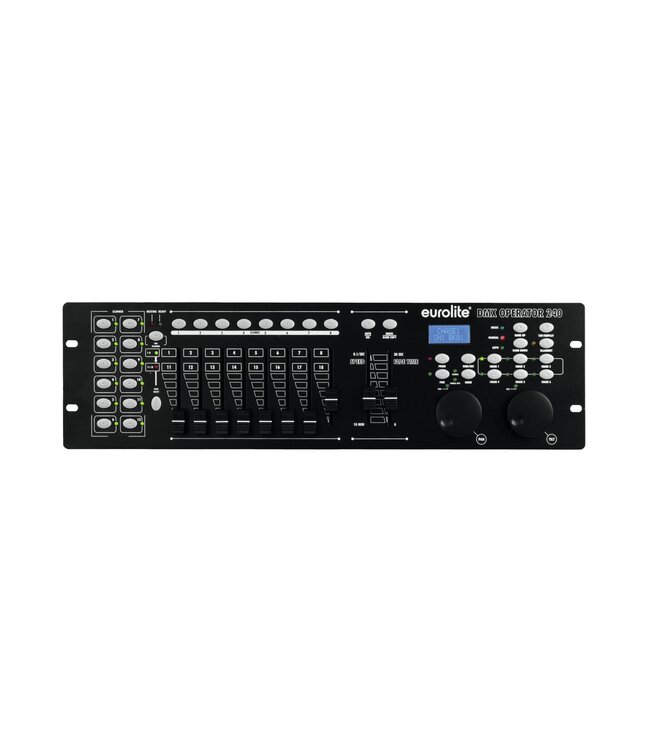

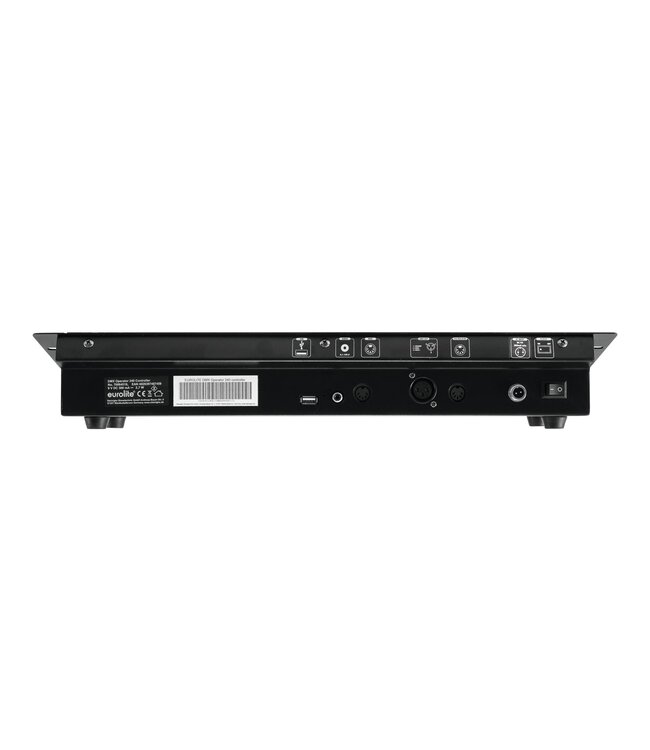

Console for 12 light effect units (max. 20 DMX channels), 2 jog wheels

• DMX controller for 12 light effect units such as moving heads, scanners and LED spot lights
• 12 fixtures with up to 20 channels each can be controlled
• 240 DMX channels can be assigned and inverted as desired to 20 control channels (softpatch)
• USB port for storing program data
• Manual, time-controlled or sound-controlled chase running mode
• Fade between scenes adjustable between 0-30 s
• Copy function for scenes and banks
• 2 DMX fixture levels can be controlled, each with up to 10 channels
• 8 DMX channel faders
• 2 jog wheels for pan/tilt
• Blackout function
• Backlit LCD (2 x 8 characters)
• Fog machine control possible
• Supports standard MIDI
• 3-pin XLR connector with polarity selector
• Firmware update via USB
• Desktop console
• Rack installation with 3 units
• Programmable 30 sequencens each with 8 scenes
• Programmable 6 chasers each with max. 240 scenes
• Can transmit up to 240 DMX channels
• Controlling by DMX; Sound to light via Microphone; Sound to light via RCA (f) mounting version; MIDI via 5-pin DIN (F) mounting version; Fog machine via 5-pin DIN (F) mounting version; RDM
• (19") 48.3 cm rack installation 3 U
