Memorizing your scenes is just as easy. When you have created a nice scene and want to memorize it as a new step you just press the Store button. This way you can easily create individual scenes and chases which can be stored on up to 24 memory banks. However, you can also easily add steps at any position, edit previously memorized scenes or delete steps.
Simultaneously running chases
With the Color Chief you can run more than one chase, thus you can use several chases and scenes simultaneously. What is more, every chase can have its own running time and fade time, i.e. you can determine for each chase how fast it should run and if the fade effect should be hard or soft. Of course, you can change these settings anytime.
Everything safe
The Color Chief has a USB interface that can be used to memorize the entire control panel with all its settings and programs. You can memorize up to 24 complete setups on a USB flash drive. This way you can easily manage different shows or fixture arrangements.

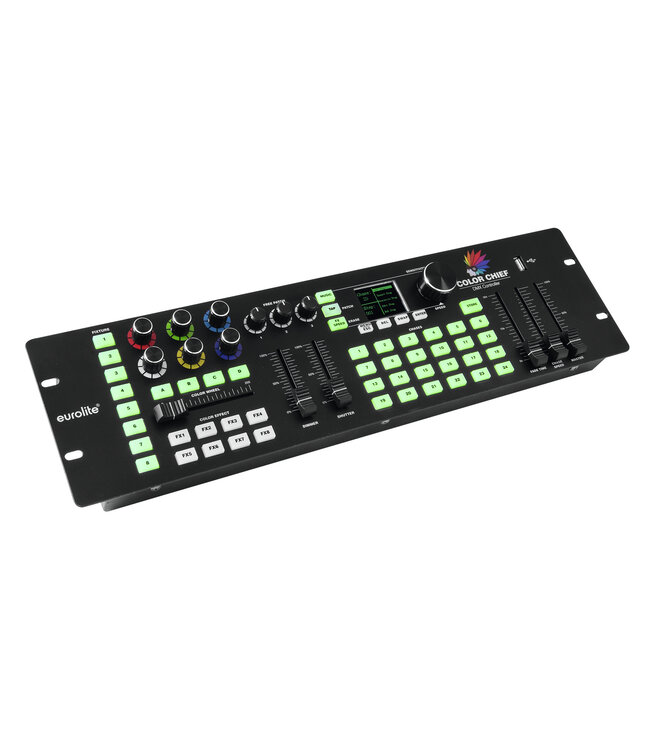

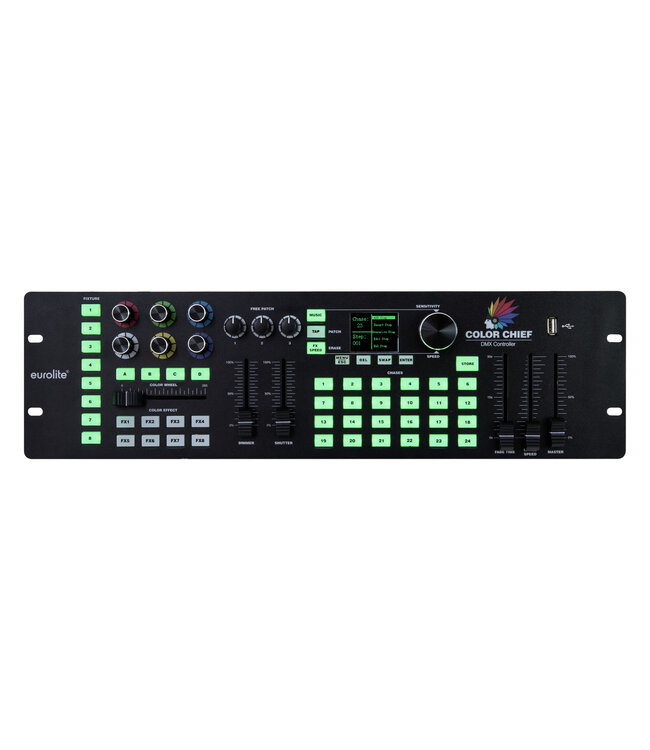

DMX lighting desk with innovative control concept for LED spotlights
- Easy control of LED spotlights with up to 6 colors, light bars as well as simple lighting effects
- For 8 devices or device groups, each with up to 4 segments
- Each device can occupy up to 30 channels
- Quick and easy programming
- Eurolite KLS systems and LED spotlights already in the library
- Additional fixtures can be configured manually
- 8 color effects directly selectable
- 3 additional channels available per fixture (e.g. for rotations)
- Color wheel selection and simulation

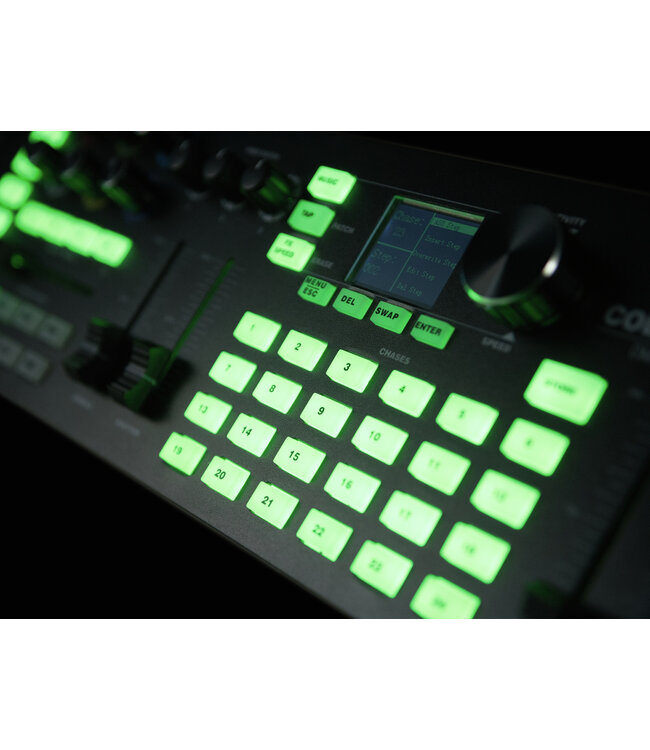

- 24 memory spaces for scenes and chases
- Several chases can be run simultaneously
- USB port for data storage of lighting programs
- Sound control via audio signal or TAP button
- Master dimming, fade time and run time easily adjustable

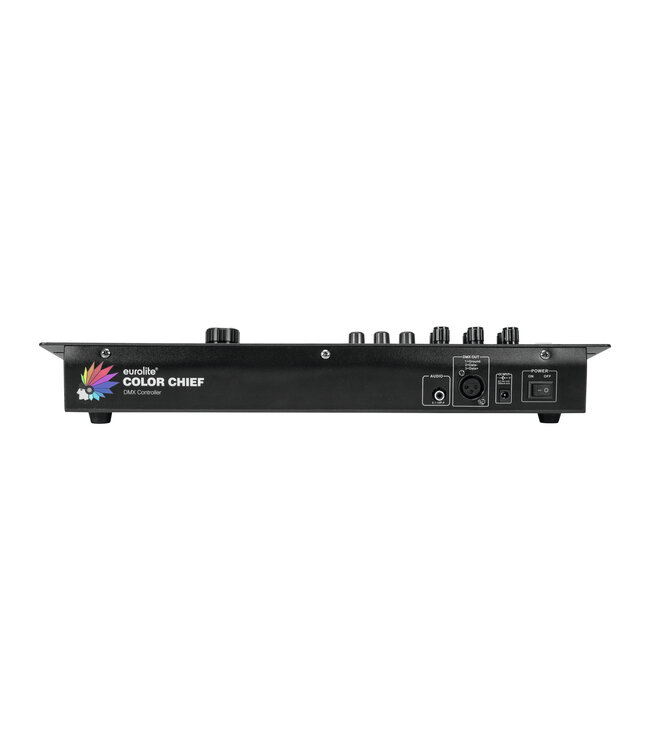

- 3-pin XLR connector
- Firmware update via USB
- Desktop console
- Programmable 24 sequencens
- Can transmit up to 240 DMX channels
- Controlling by DMX; Sound to light via RCA (f) mounting version; Sound to light via Microphone
- (19") 48.3 cm rack installation 3 U
| Power supply: |
100-240 V AC, 50/60 Hz
9 V DC 800 mA |
| Power consumption: |
10 W |
| IP classification: |
IP20 |
| Programs: |
Programmable
24 Sequences |
| DMX channels: |
Output 240 |
| DMX output: |
1 x 3-pin XLR (F) mounting version |
| Power connection: |
Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided) |
| Control: |
DMX; Sound to light via RCA (f) mounting version; Sound to light via Microphone |
| Housing color: |
Black |
| Available storage media: |
USB devices (FAT 32) |
| USB port: |
Typ A |
| Color: |
Black |
| Housing design: |
(19") 48.3 cm rack installation 3 U |
| Dimension: |
Width: 48.3 cm
Depth: 13.35 cm
Height: 8.5 cm |
| Weight: |
2.25 kg |
