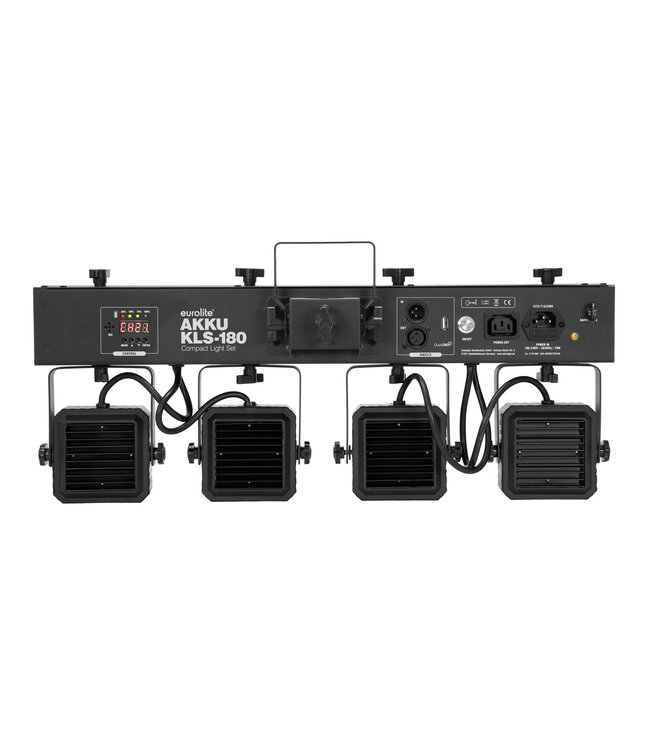

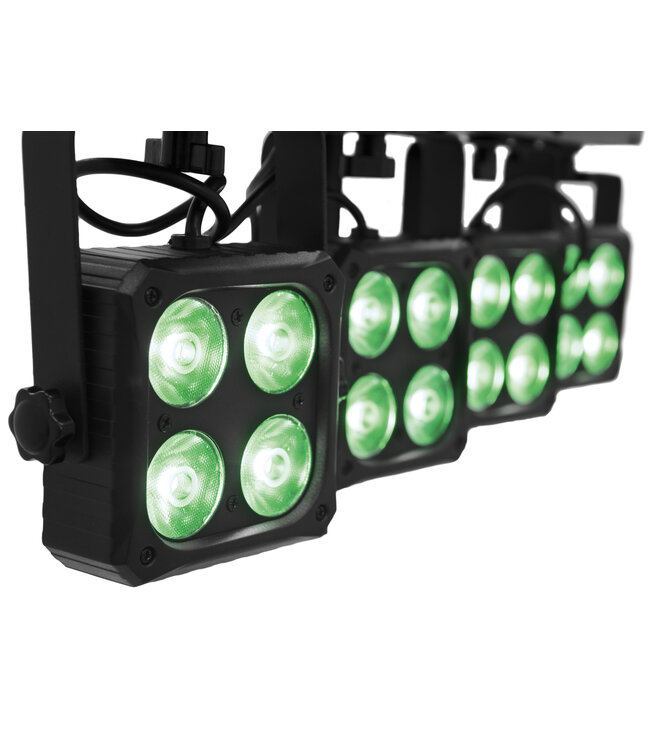

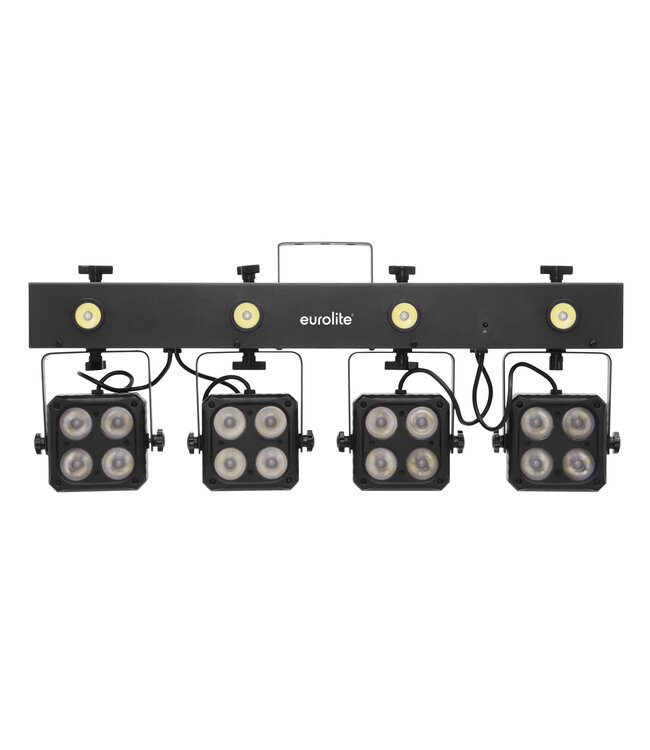

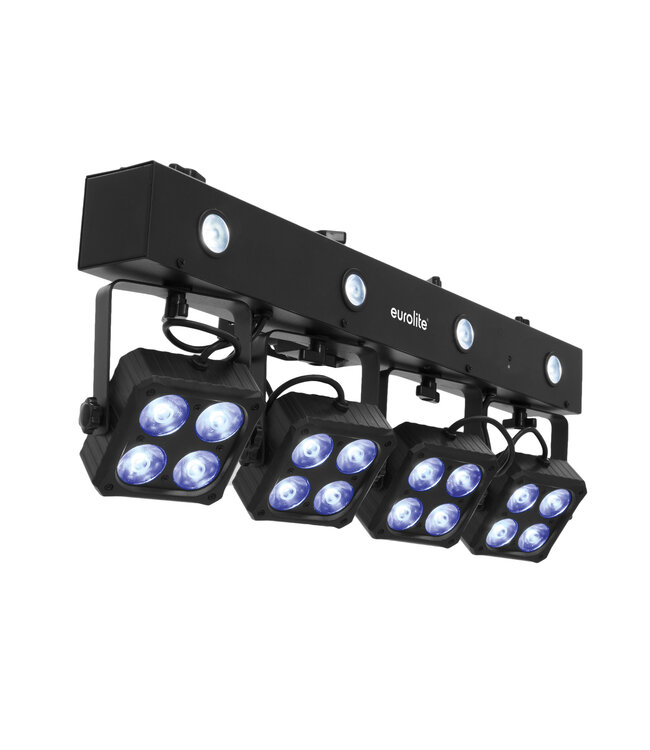

Complete DMX LED lighting system with rechargeable battery pack
- Crossbar with integrated DMX control unit and stand sleeve
- Ultra-light ideally suited for mobile use
- Ideal for bands, stages or solo entertainers
- Suited for installation on a speaker stand (not included) or truss
- Comes pre-assembled with practical transport bag
- Operation via mains connection or built-in rechargeable lithium-ion battery with up to 20 hours operating time
- Integrated automatic charging of the battery with indicator
- Energy saving mode
- 4 powerful 8 W LEDs (4in1) per spot provide for an exquisite RGBW color mix
- Strobe effect with 4 white 1 W LEDs
- Movable and tiltable spotlights
- Each spot can be individually controlled via DMX
- Built-in auto and music show programs
- Direct color selection for 20 preset colors
- Stepless RGBW color blend, color change, color fade, dimmer and strobe effect
- Supports QuickDMX - the wireless DMX system from Eurolite
- Built-in phantom-powered USB port for QuickDMX receivers (accessories)
- DMX512 control via any commercial DMX controller
- Addressing and setting via control panel with 4-digit LED display
- Convenient wireless control via included IR remote control EUROLITE IR-7
- Black lacquered metal version with movable mounting bracket
- Switch-mode power supply for operation between 100 and 240 volts
- IEC terminals for power linking up to 8 units
- LED: Spot 4 x high-power 8 W 4in1 QCL RGBW (homogenous color mix)
- LED: Strobe effect 4 x separate controlling each with 4 x high-power 1 W CW
- Can be operated in 3; 4; 8; 21 CH mode
- The device is cooled by passive convection
- Controlling by Stand-alone; Sound to light via Microphone; DMX; QuickDMX via USB (optional); IR remote control (provided); Master/slave function
- Is in EASY SHOW already preprogrammed
- Flicker-free projection
Power supply: |
100-240 V AC, 50/60 Hz |
IP classification: |
IP20 |
Power connection: |
Battery/battery pack Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided) |
Power output: |
IEC connector (F) mounting version |
Fuse: |
T 1 A Fuse replaceable |
Battery pack type: |
1 x lithium ion 22,2 V, 4400 mAh, 97,68 Wh |
Battery pack: |
Battery operation up to 20h depending on program used Recharging time 5h |
Lamp type: |
LED lamp |
LED: |
Spot 4 x high-power 8 W 4in1 QCL RGBW (homogenous color mix) Strobe effect 4 x high-power 1 W CW |
Flash rate: |
0 - 20 Hz |
DMX channels: |
3; 4; 8; 21 |
DMX input: |
3-pin XLR (M) mounting version |
DMX output: |
3-pin XLR (F) mounting version |
Cooling: |
Passive convection |
Control: |
Stand-alone; Sound to light via Microphone; DMX; QuickDMX via USB (optional); IR remote control (provided); Master/slave function; EASY SHOW |
Beam angle: |
9° |
Beam angle (1/2 peak): |
9° |
Housing color: |
Black |
Display type: |
4 digits 7-segment LED display |
Dimensions: |
Width: 61 cm Depth: 14,5 cm Height: 27,4 cm |
Weight: |
5,90 kg |
