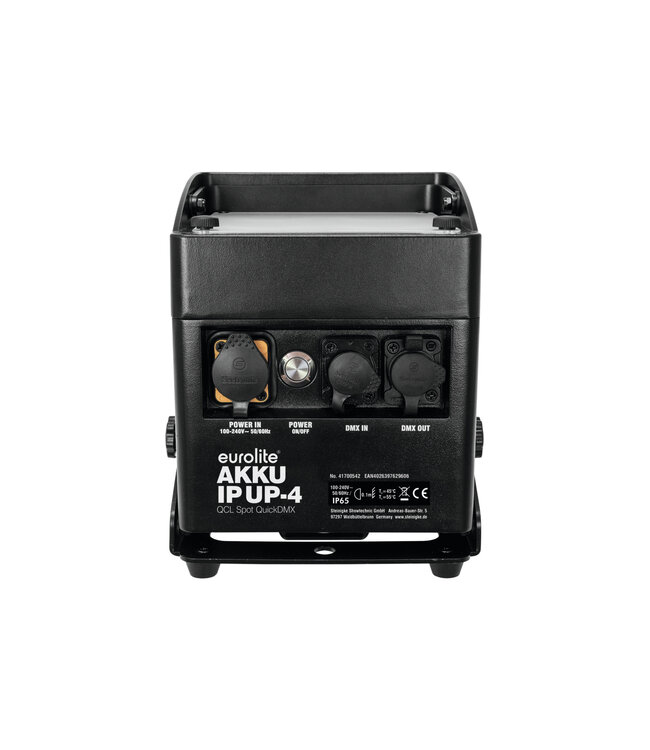

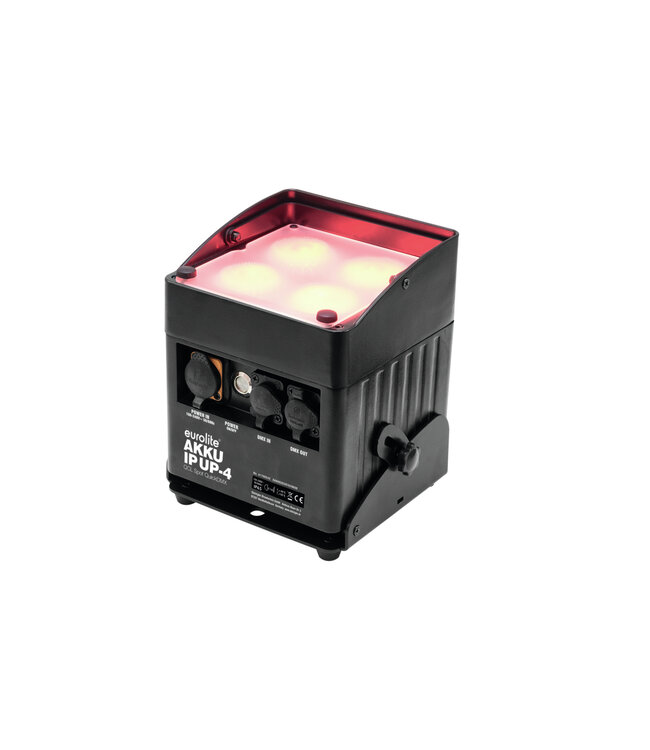

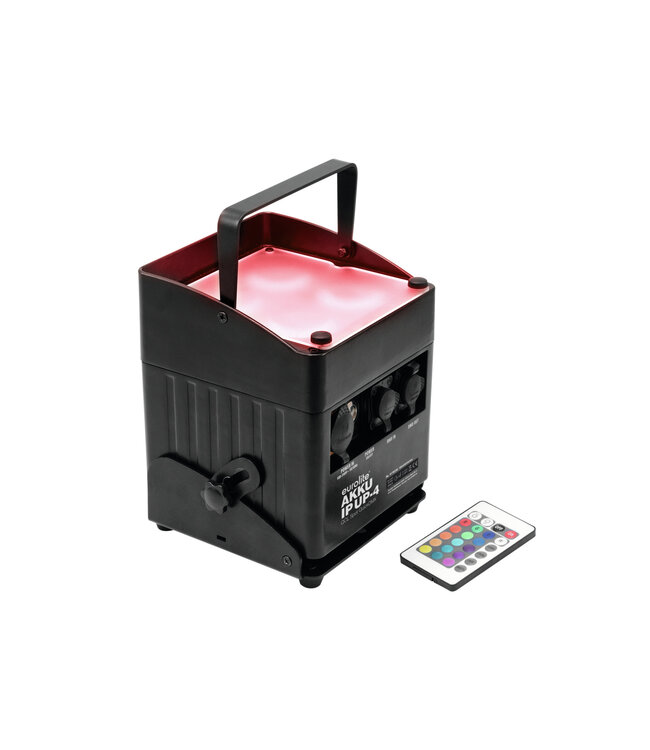

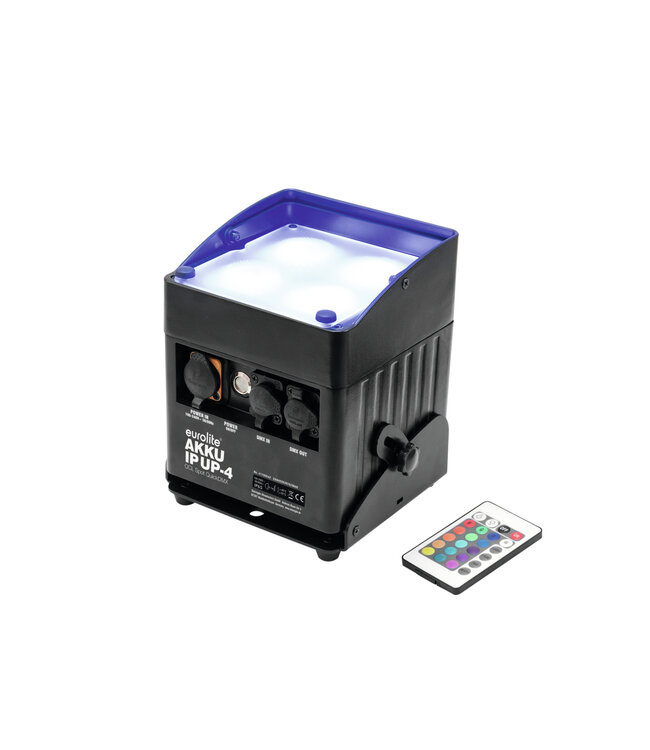

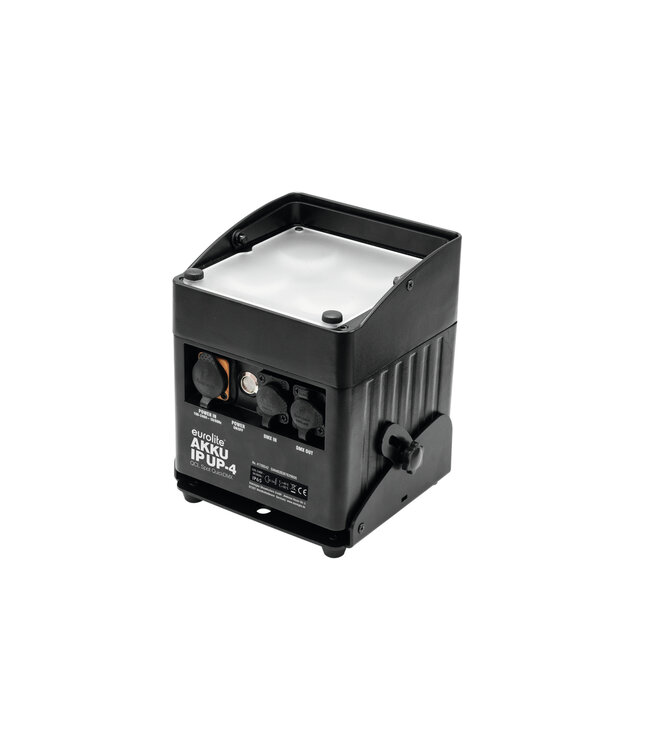

Weatherproof (IP65), Uplight with 4 x 10 W 4in1 LED, QuickDMX & diffusor disk
- Compact and bright
- 4 high-power 10 W RGBW LEDs (4in1)
- Suitable for external use (IP65)
- Additional milky diffuser provides a homogeneous and soft light
- With integrated QuickDMX transmitter/receiver for the wireless transmission of DMX512 signals
- Operation via mains connection or built-in rechargeable lithium-ion battery with up to 16 hours operating time
- Wireless master/slave operation via QuickDMX
- Integrated automatic charging of the battery with indicator
- Functions: static colors, stepless RGBW color mixture, internal programs, dimmer, strobe effect with variable speed
- Dimmer speed (step response) adjustable
- With integrated folding foot for angled placement by floor installation
- Hanging as well as standing installation possible
- Addressing and setting via Control Board with touch buttons and LCD
- Kensington Security Slot to secure the device against theft
- Switch-mode power supply for operation between 100 and 240 volts
- Power connection via IP P-Con jack and included power cable with safety plug
- LED: 4 x high-power 10 W 4in1 QCL RGBW (homogenous color mix)
- Can be operated in 3; 4; 6; 8; 10 CH mode
- The device is cooled by passive cooling by convection
- Controlling by Stand-alone; DMX; QuickDMX built-in; Sound to light via Microphone; IR remote control
- Is in Light J Software; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE already preprogrammed
- Flicker-free projection
- Suitable for outdoor use
- With the kensington lock theft protection
Power supply: |
100-240 V AC, 50/60 Hz |
IP classification: |
IP65 |
Battery pack type: |
1 x lithium ion 14.8 V, 7800 mAh, 115.44 Wh |
Battery pack: |
Battery operation up to 16h depending on program used Recharging time 3h |
Lamp type: |
LED lamp |
LED: |
4 x high-power 10 W 4in1 QCL RGBW (homogenous color mix) |
DMX channels: |
3; 4; 6; 8; 10 |
DMX input: |
1 x 3-pin XLR (M) mounting version IP |
DMX output: |
1 x 3-pin XLR (F) mounting version IP |
Power connection: |
Battery/battery pack Mains input IP P-Con (Power in) yellow mounting version Power supply cord with safety plug (provided) |
Cooling: |
Passive cooling by convection |
Control: |
Stand-alone; DMX; QuickDMX built-in; Sound to light via Microphone; IR remote control; Light J Software; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE |
Beam angle: |
7° |
Beam angle (1/2 peak): |
7° |
Beam angle (1/10 peak): |
20° |
Housing color: |
Black |
Carrier frequency: |
2.4 GHz |
Theft protection: |
Kensington lock |
Dimension: |
Width: 15 cm Depth: 18 cm Height: 19.8 cm |
Weight: |
4.44 kg |
